Removing Support For DME Control Module

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw down fastening nut -1-  and take off ground strap with the twist lock.

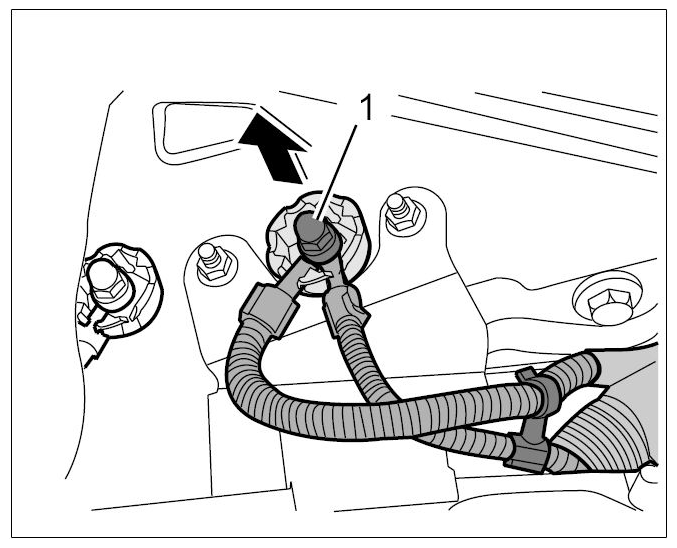

    Fig 1: Loosening Ground Straps
    G09415996Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open the retaining clips -arrow A-  and take out the DME control module wire harness -arrow B-  .

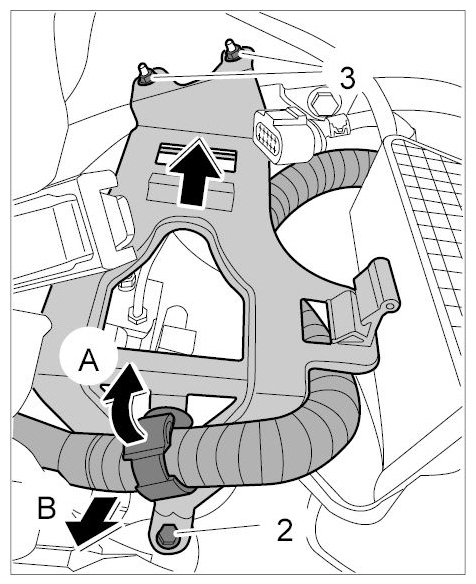

    Fig 2: Removing Support For DME Control Module
    G09415997Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew the fastening screw -2-  and the two fastening nuts -3-  and take out the support for the DME control module.
