Installing Intake Pipe On The Heating/Fresh Air Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position intake manifold and secure with both fastening nuts -1-  . → Tightening torque: 4.5 ftlb  .

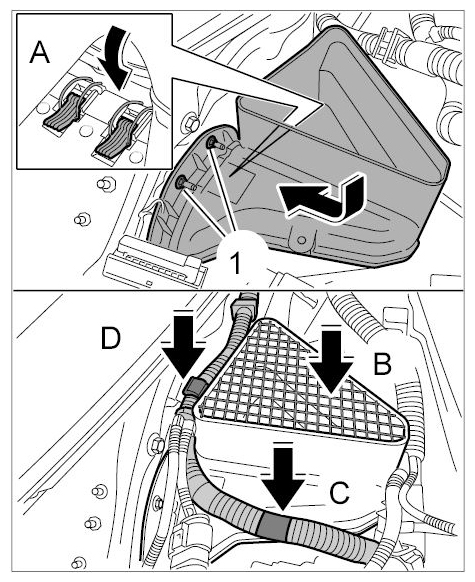

    Fig 1: Installing Intake Pipe On Heating/Fresh Air Unit
    G09416033Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Close both retaining clips in the intake manifold -arrow A-  .
  3. Insert air inlet grille -arrow B-  .
  4. Clip in wire harness to intake manifold -arrow C-  and insert wire harness retaining clips on intake manifold -arrow D-
