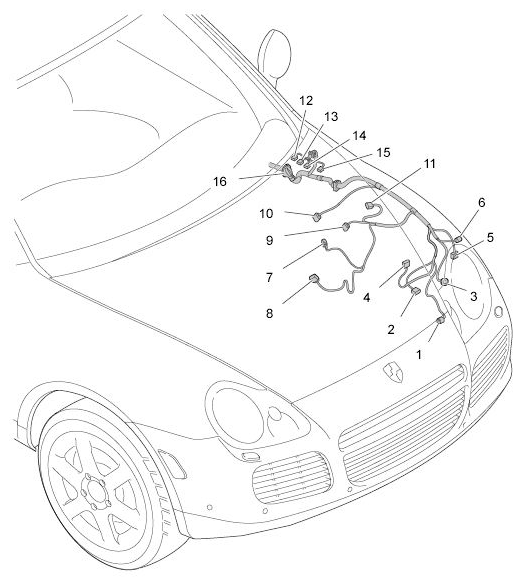

Sub-Part - Installing Front Left Wire Harness

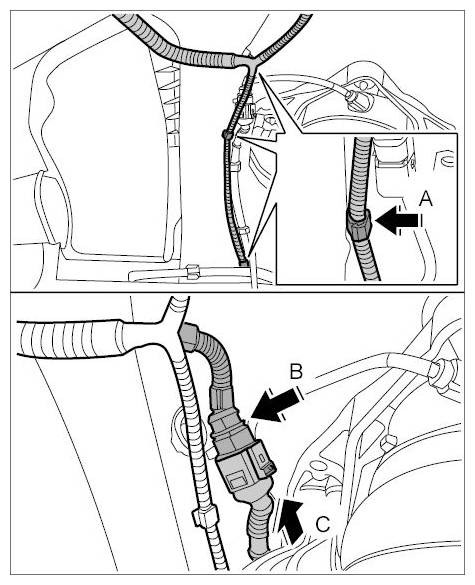

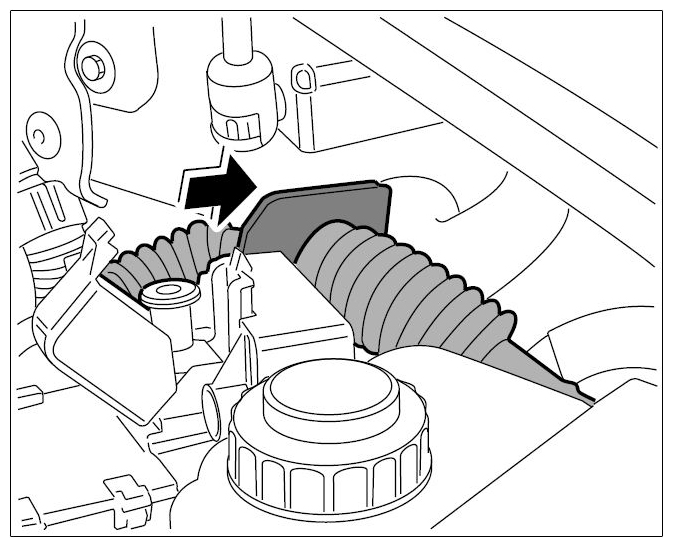

Fig 2: Mounting Rubber Sleeve On Left Firewall

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

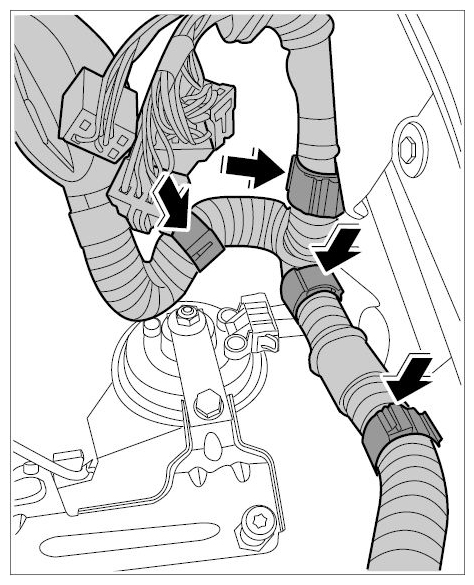

1. 1.1. Push front left wire harness from the engine compartment in direction of passenger compartment and mount the rubber sleeve to the left firewall.

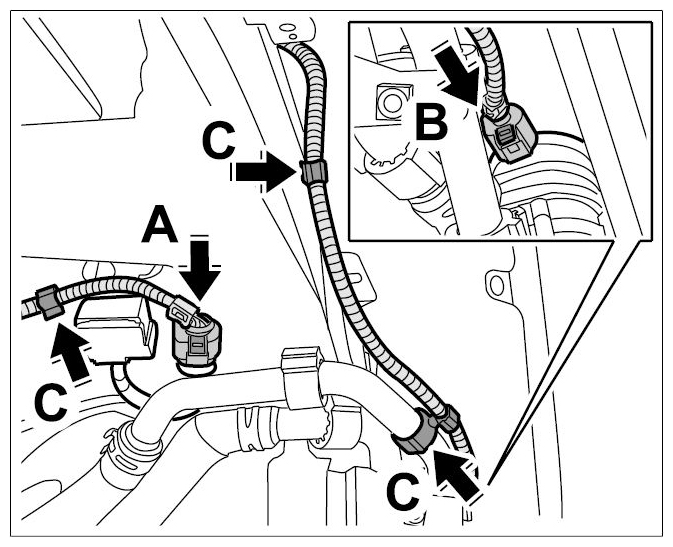

Fig 5: Connecting Connector On Sensor For Lateral Acceleration

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 5.1. Push on connector onto sensor for lateral acceleration in left wheel housing -arrow A-  until this is felt to engage.
2. 5.2. Push on the connector to the circulating pump -arrow B-  until it is felt to engage.
3. 5.3. Route wire harness and clip in the three retaining clips on the left wheel housing -arrows C-  .

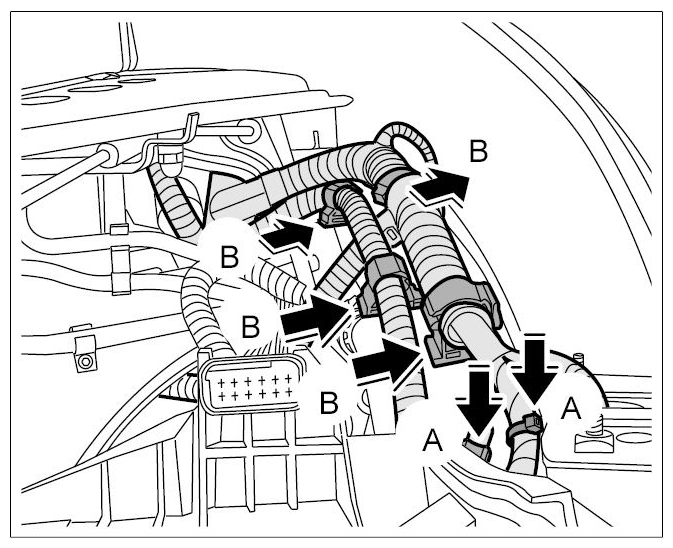

Fig 6: Pushing Plug Connection For Abs Sensor And Brake Pad Wear Indicator Together

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Route wire harness and clip in the three retaining clips in the left wheel housing -arrows A-  .
2. 6.2. Clip in socket for ABS sensor and brake pad wear indicator -arrows B-  .
3. 6.3. Push the plug connection for the ABS sensor and brake pad wear indicator -arrow C-  , until this is felt to engage.

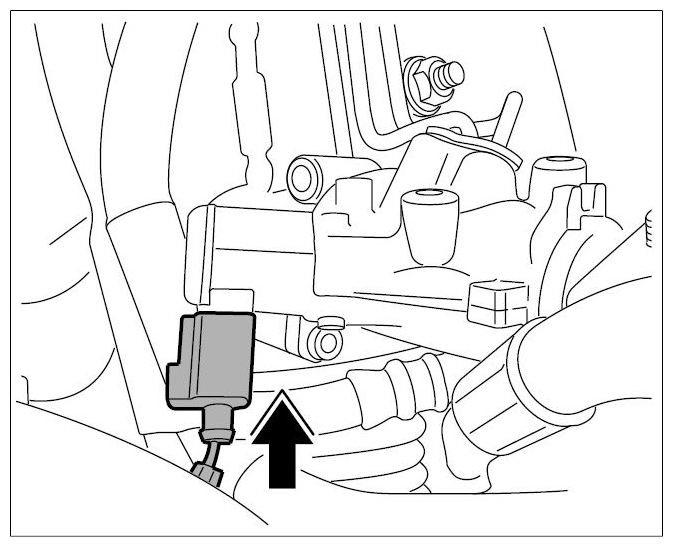

Fig 7: Pushing Connector Onto Servo Valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Push connector onto servo valve until it is felt to engage.

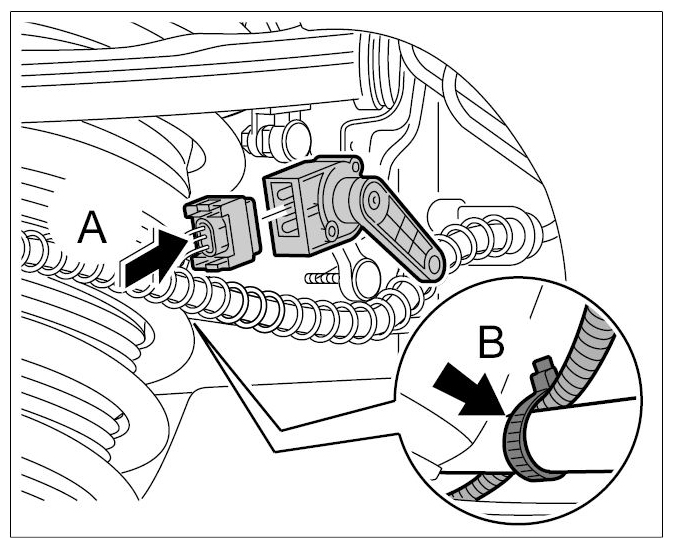

Fig 8: Pushing Connector On Angle Sensor For HBA

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 8.1. Push connector onto angle sensor for HBA on the left wheel suspension -arrow A-  , until this is felt to engage.
2. 8.2. Fasten wire harness with a new tie-wrap -arrow B-  to the refrigerant line.

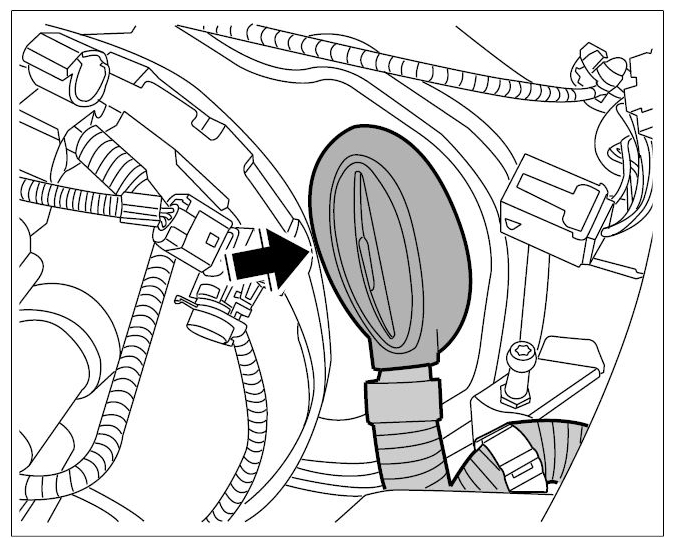

Fig 10: Inserting Bulb Holder In Front Left Direction Indicator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 11.1. Insert bulb holder in the direction indicator light in the left wheel housing -arrow A-  and turn slightly while doing so.
2. 11.2. Push connector onto the antenna for TPM in left wheel housing -arrow B-  , until this is felt to engage.

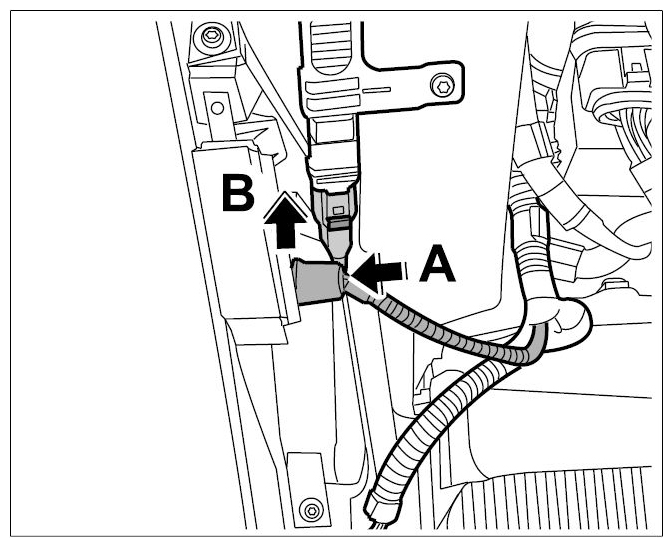

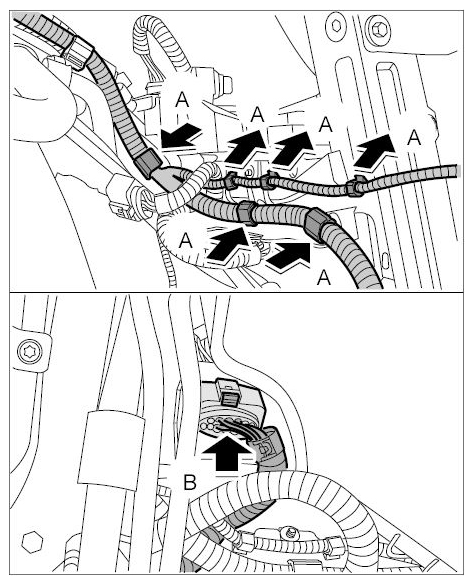

Fig 11: Pushing Connector Onto Headlight Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 12.1. Route wire harness underneath the headlight housing and clip in the six retaining clips -arrows A-  .
2. 12.2. Push on connector -arrow B-  , until it is felt to engage.

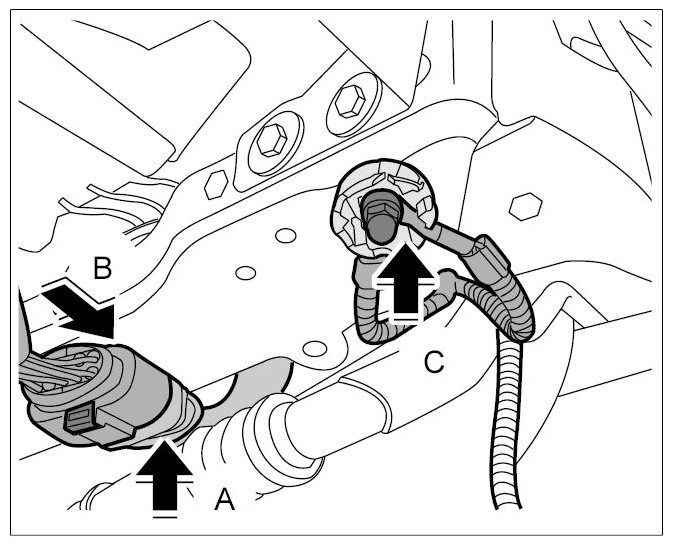

Fig 12: Pushing Front Wire Harness Plug

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 13.1. Clip in socket for front wire harness on left front cross member -arrow A-  .
2. 13.2. Insert connector -arrow B-  , until it is felt to engage.
3. 13.3. Push ground straps together with twist lock on threaded bolt -arrow C-  and screw down with fastening nut. → Tightening torque: 9 Nm (6.5 ftlb.)

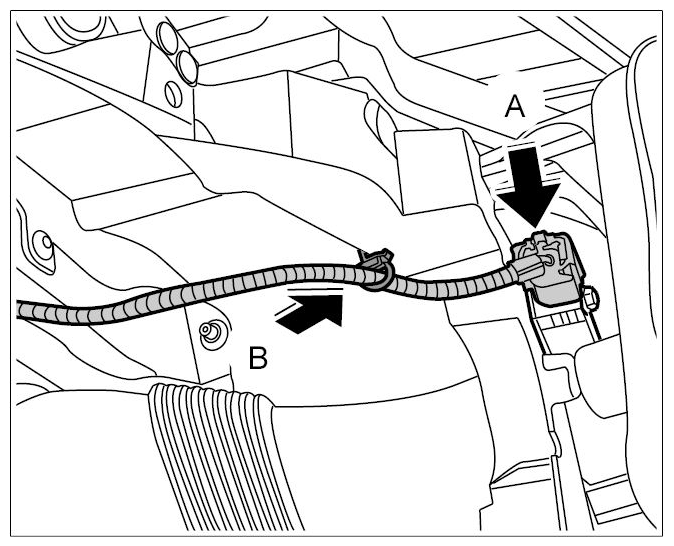

Fig 13: Pushing Connector On Sensor For Airbag Connection Together

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 14.1. Push on connector onto sensor for airbag -arrow A-  until the latch is felt to engage.
2. 14.2. Push wire harness with support onto lock carrier -arrow B-  .

Information

Select a place for the joint where there is enough space to join all the lines present.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

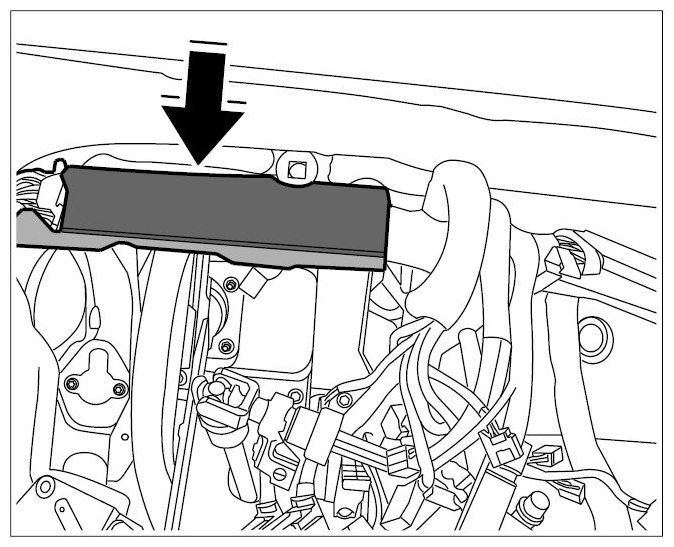

The electric lines are located in the plenum panel and are thus exposed to the highest demands.

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair kit for Cayenne harnesses NR.155-2  .

Crimping samples are to be prepared before beginning work.

Information

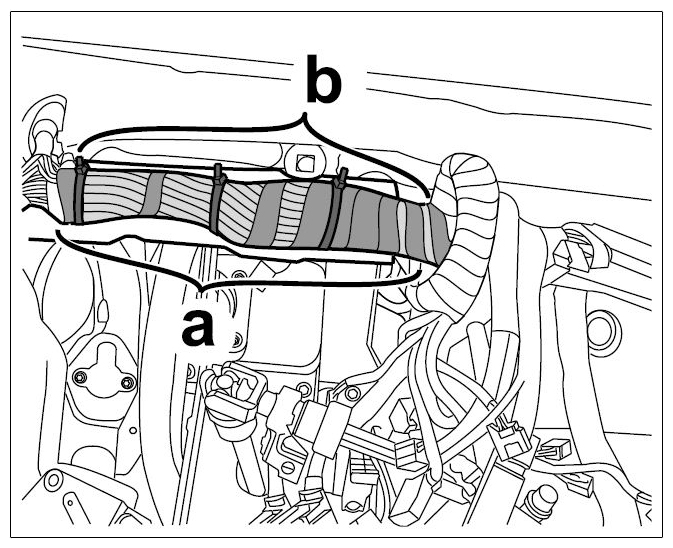

Fig 14: Connecting And Routing Front Left Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 15.1. Cut off lines in different lengths (due to the shrink-fit connections).
2. 15.2. Slide shrink-fit hoses onto the lines.
3. 15.3. Strip 10 mm of insulation off the wires.
4. 15.4. Crimp the lines with crimping sleeves and the hand crimping pliers from the repair kit for harnesses NR.155-1.
5. 15.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air blower with special nozzle  (recommended accessories for the repair kit for harnesses) so that it is watertight.
6. 15.6. Wrap commercially available PVC tape all around the area of the connection points.
7. 15.7. Secure the repaired area -b-  to the main wire harness with tie-wraps.
