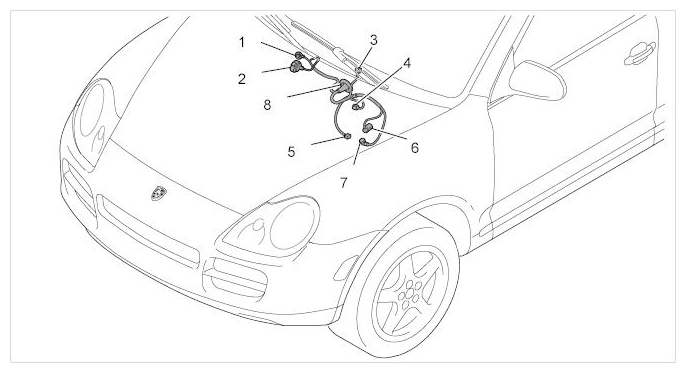

Installing The Wire Harness For Brake Booster

1. 1.1. Push wire harness for brake booster through from the engine compartment towards the interior -arrow A-  and fit rubber sleeve on the centre firewall.
2. 1.2. Clip in wire harness for brake booster on the centre firewall with the retaining clip -arrow B-  .

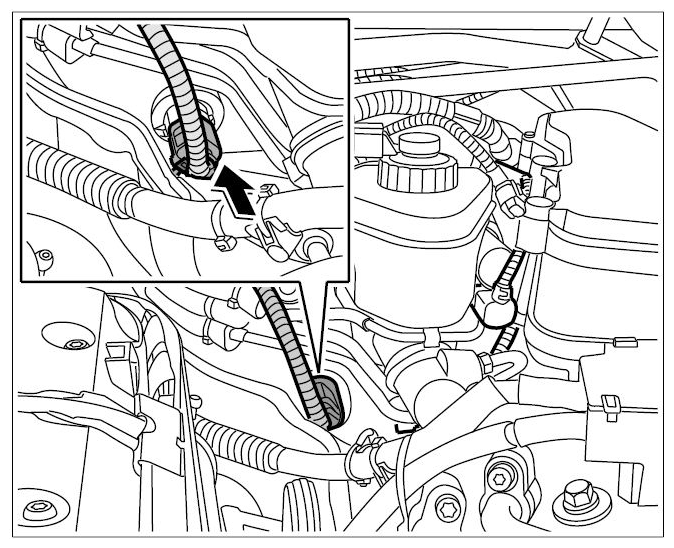

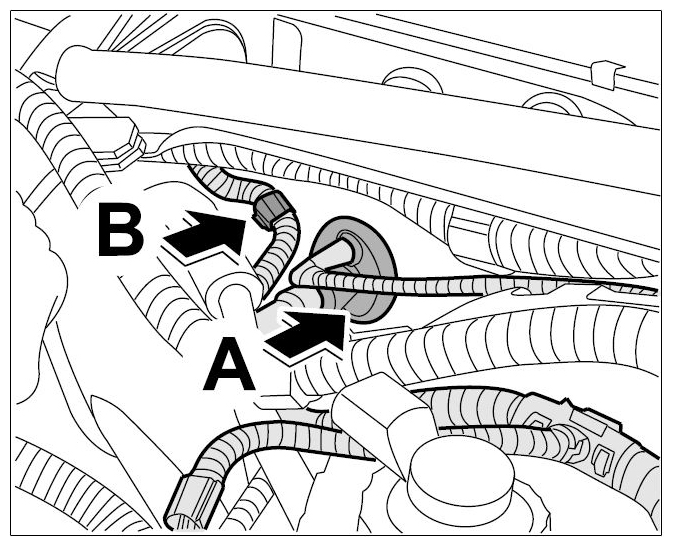

   Fig 2: Fitting Rubber Sleeve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 4: Pressure Sensor Connector (Brake Assist) Plugged In

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4.1. Insert the pressure sensor connector (brake assist system) until it is felt to engage.

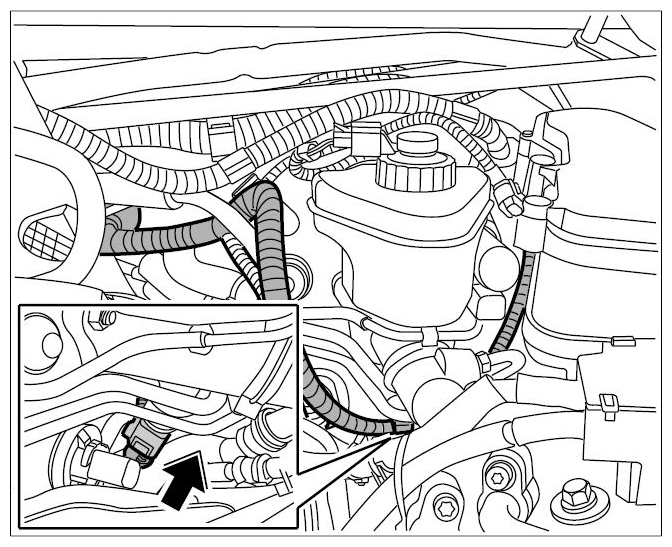

Fig 5: Plugging In Connector On Distance Sensor (Brake Assist System)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 5.1. Insert the way-sensor connector (brake assist system) until it is felt to engage.

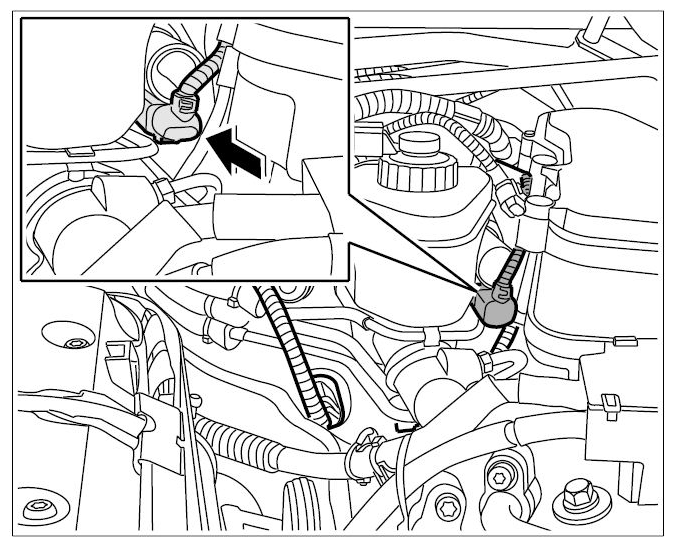

Fig 6: Plugging In Connector On Brake Booster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Push connector onto brake booster until it is felt to engage.

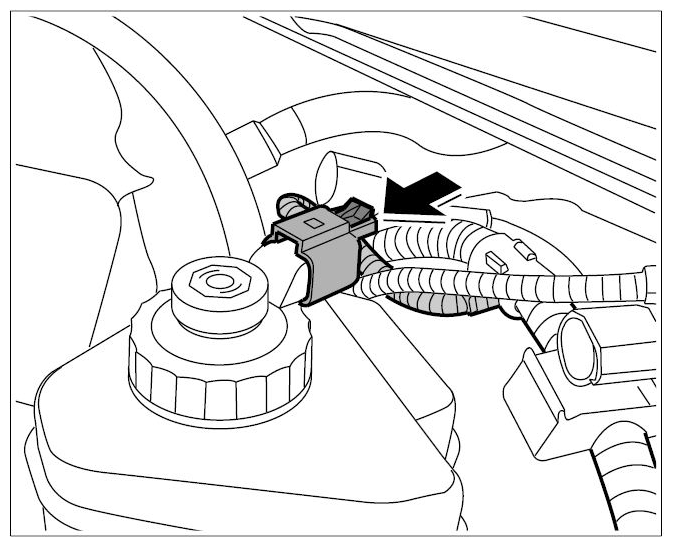

Fig 7: Plugging In Connector On Brake Fluid Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Push on connector for brake fluid reservoir until it is felt to engage.

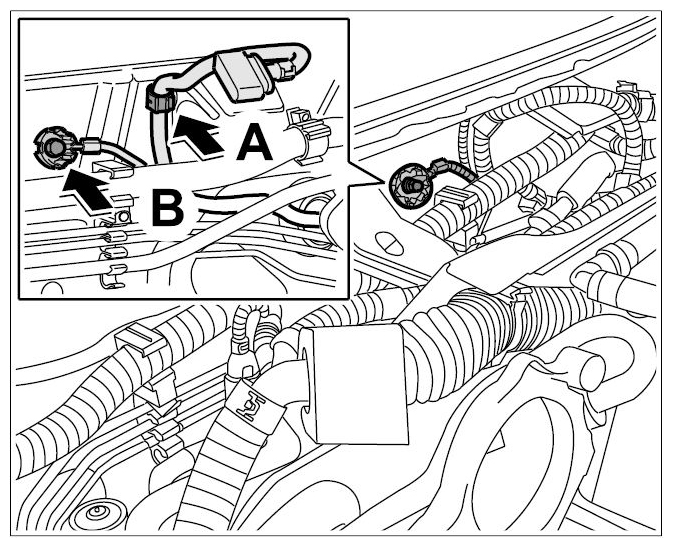

Fig 8: Securing Centre Firewall Ground Strap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 8.1. Clip in wire harness for brake booster at the retaining clip on the firewall -arrow A-  .
2. 8.2. Connect ground strap together with the twist lock to the threaded bolt on the centre firewall -arrow B-  and secure with fastening nut. → Tightening torque: 9 Nm (6.5 ftlb.)

Information

Select a place for the joint where there is enough space to join all the lines present.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

The electric lines are located in the plenum panel and are thus exposed to the highest demands.

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair kit for Cayenne harnesses NR.155-2  .

Crimping samples are to be prepared before beginning work.

Information

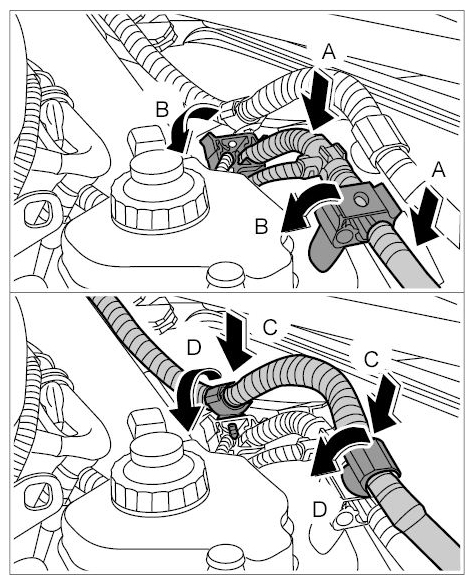

Fig 9: Connecting And Routing Wire Harness For Brake Booster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 9.1. Cut off lines in different lengths (due to the shrink-fit connections).
2. 9.2. Slide shrink-fit hoses onto the lines.
3. 9.3. Strip 10 mm of insulation off the wires.
4. 9.4. Crimp the lines using crimping sleeves and the manual crimping pliers  from the repair kit for Cayenne wire harnesses Nr.155-2.
5. 9.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the hot-air blower with special nozzle  (recommended accessories for the repair kit for wire harnesses) so that they are watertight.

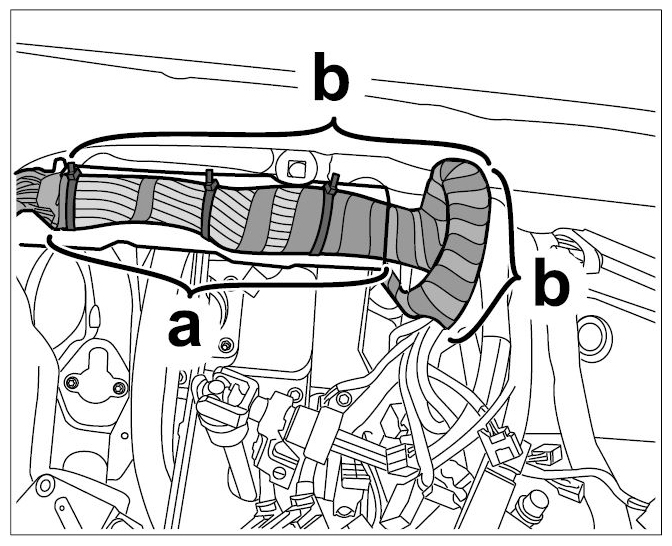

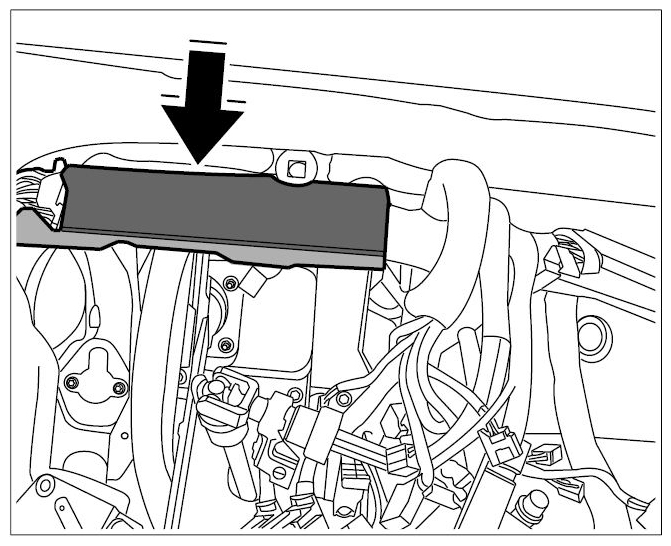

6. 9.6. Wrap commercially available PVC tape all around the area of the connection points.
