Rework Main Wire Harness (Connection Points A And B) - Side Member Area On The Right

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

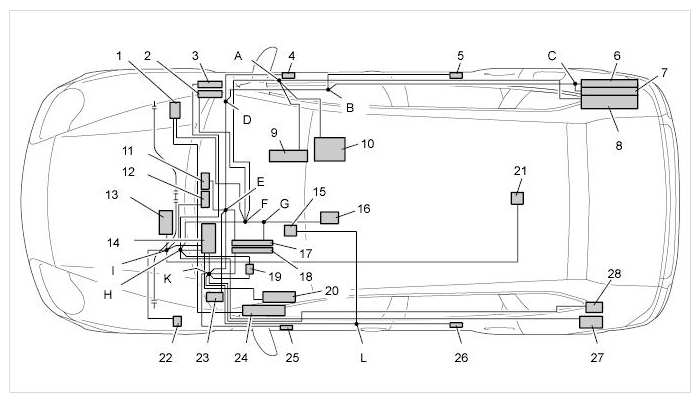

Fig 1: Overview Of Connection Points - Control Units

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection point SC 14/15
Connection point SC 24/25

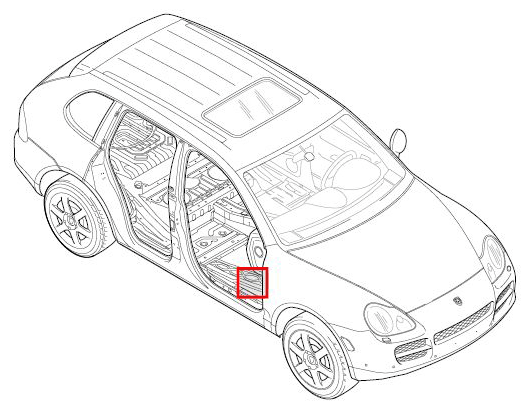

Fig 2: Installation Position For Right Side Member Connection Point

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

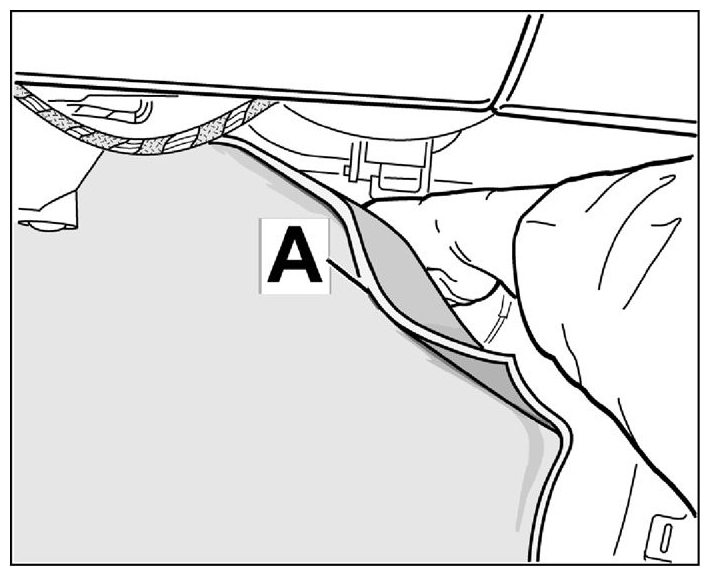

Pull back carpeted floor and sound absorber slightly -A- in the front right footwell.

Fig 3: Pulling Back Carpeted Floor And Sound Absorber
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

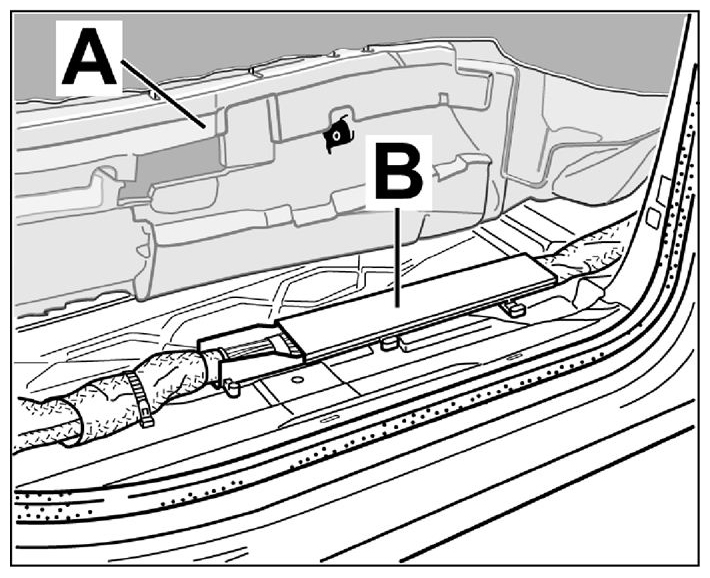

Lift carpeted floor -A- on the right side at the entrance and fold inward.

Fig 4: Folding Carpeted Floor Inward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover for main wire harness -B- and open it.

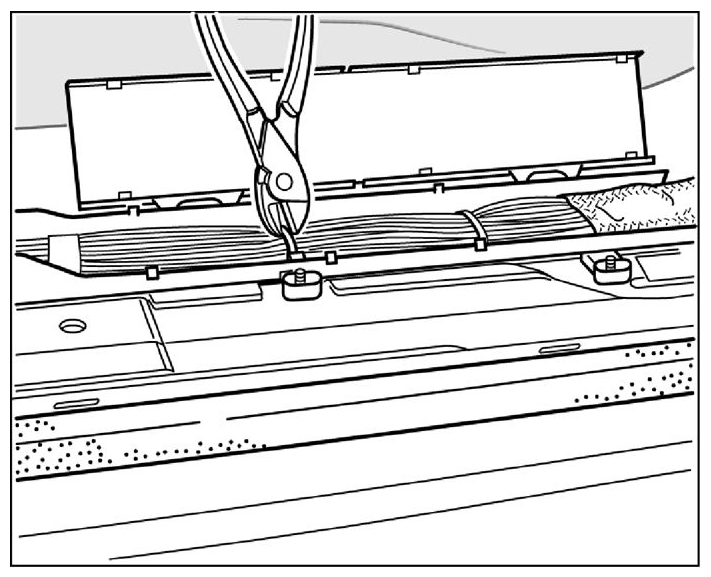

Remove the four tie-wraps and expose main wire harness.

Fig 5: Removing Tie-Wrap At Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Corrosion can be identified by leads that are tarnished or discoloured instead of bright.
Remove insulating tape from all connection points (between 4 and 8, depending on the vehicle equipment) and check connection points for corrosion.
1. 5.1. Corrosion recognisable - continue with Step 6.
2. 5.2. No corrosion recognisable - continue with Step 9.
Information

To avoid mixing up the lines, one of them should be crimped again after the other connection point.

Information

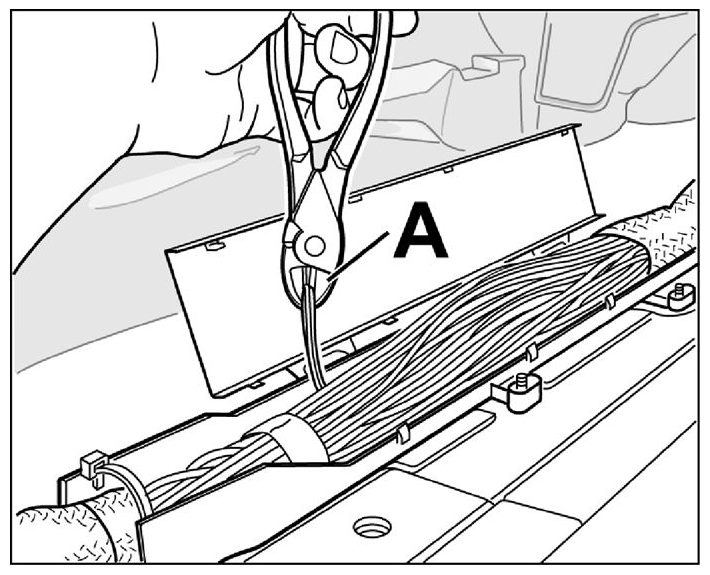

Cut away one of the exposed connection points -A- with a side cutters and strip off insulation until no more corrosion can be seen. The leads must be bright and no longer tarnished or discoloured.

Fig 6: Cutting Off Connection Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair kit for Cayenne harnesses NR.155-2 .

Crimping samples are to be prepared before beginning work.
Crimp stripped line ends of the connection point using crimping sleeves and the hand crimping pliers from the Repair kit for Cayenne harnesses Nr.155-2 .
Cut off all other corroded connection points, one after another, strip off the insulation and crimp them again.

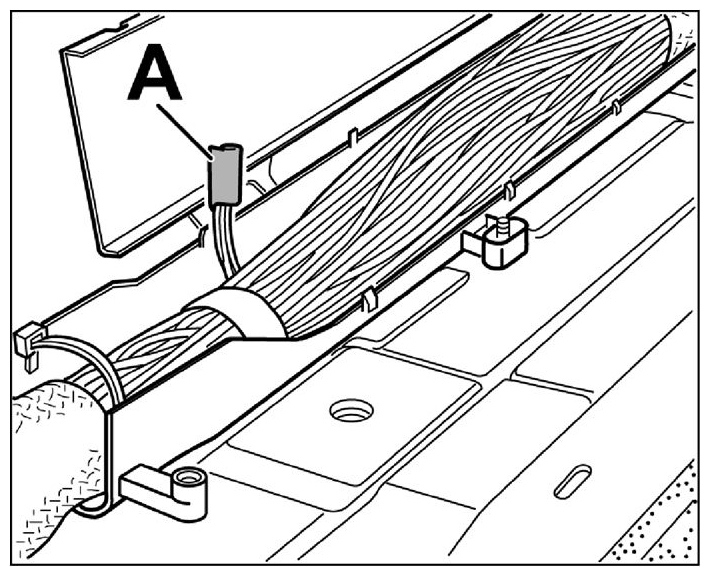

Insulate all connection points with a suitable shrink-fit hose -A- and carefully shrink them using the hot-air blower with special nozzle (recommended accessories for the repair kit for harnesses) so that they are watertight.

Fig 7: Identifying Insulating Connection Points With Shrink-Fit Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

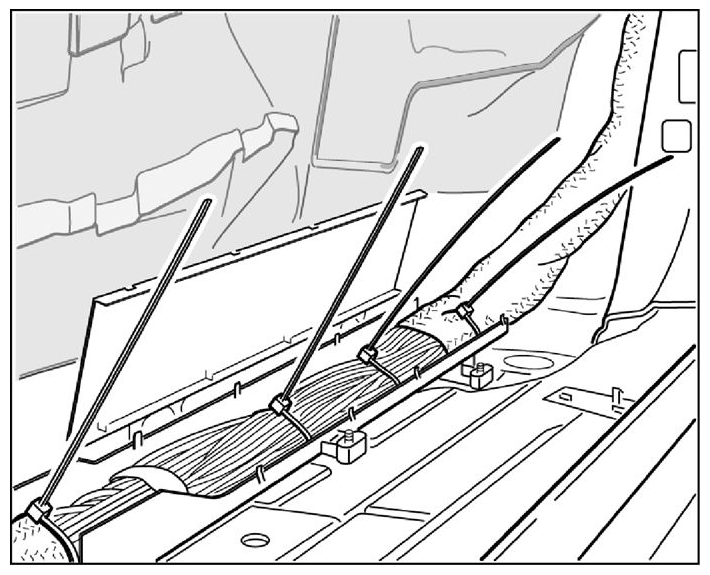

Route main wire harness and fasten with four new tie-wraps. Shorten tie-wraps.

Fig 8: Securing Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close cover of main wire harness -B- .

Fig 9: Folding Back Carpeted Floor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold back carpeted floor -A- on the right side at the entrance.
If necessary after moisture leakage, place the vehicle in the drying cabin for 3 - 4 hours (overnight if necessary) at a temperature of approx 60°C.
Fold back carpeted floor and sound absorber -A- in the front right footwell.

Fig 10: Folding Back Carpeted Floor And Sound Absorber
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
