Removing Intake Pipe On The Heating/Fresh Air Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out wire harness retaining clips on the intake manifold -arrow A-  and unclip the wire harness on the intake manifold -arrow B-  .

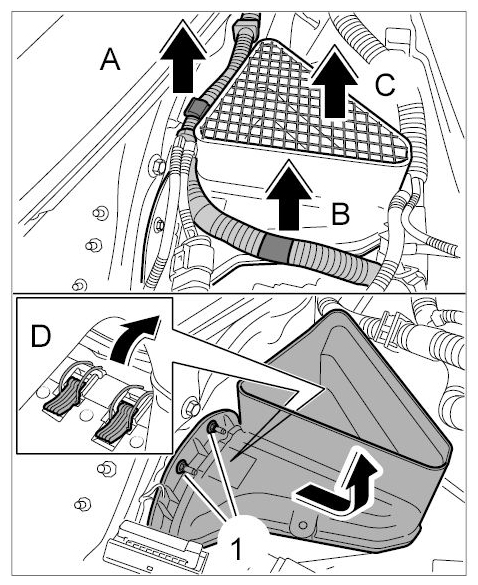

    Fig 1: Removing Intake Pipe On Heating/Fresh Air Unit
    G09415906Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull out air inlet grille -arrow C-  .
  3. Open both retaining clips in the intake manifold -arrow D-  .
  4. Unscrew the two fastening nuts -1-  and remove the intake manifold.
