Removing Main Wiring Harness - Sunroof, Right Roof Area

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear roof trim panel → Removing roof lining .

Release plug connection (roof rack rear) -Arrows A- and disconnect -Arrow B- .

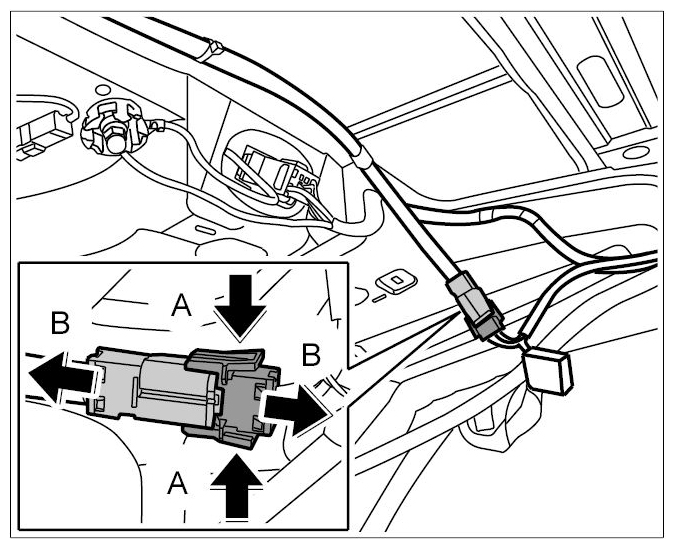

Fig 1: Removing Plug Connection (Roof Rack Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut open tie-wraps -arrows- and remove the wire harness.

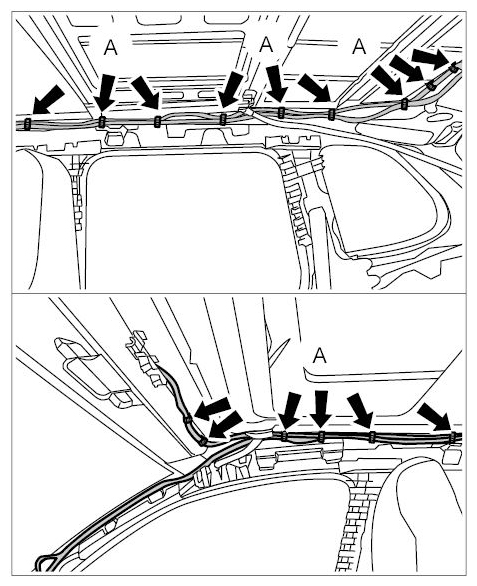

Fig 2: Removing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove main wire harness → Removing Main Wiring Harness - Engine Compartment .
