Removing Main Wiring Harness - Left Roof Area

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove headliner → Removing roof lining .

Disconnect the battery → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .

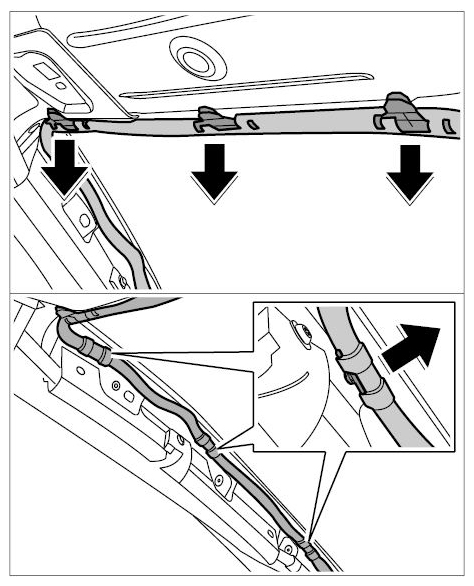

Unclip wiring harness -arrows- .

Fig 1: Unclipping Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove main wire harness - dashboard area and centre console → Removing Main Wiring Harness .
