Installing Main Wiring Harness - Sunroof, Right Roof Area

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install main wire harness - dashboard area and centre console → Installing Main Wiring Harness - Engine Compartment .

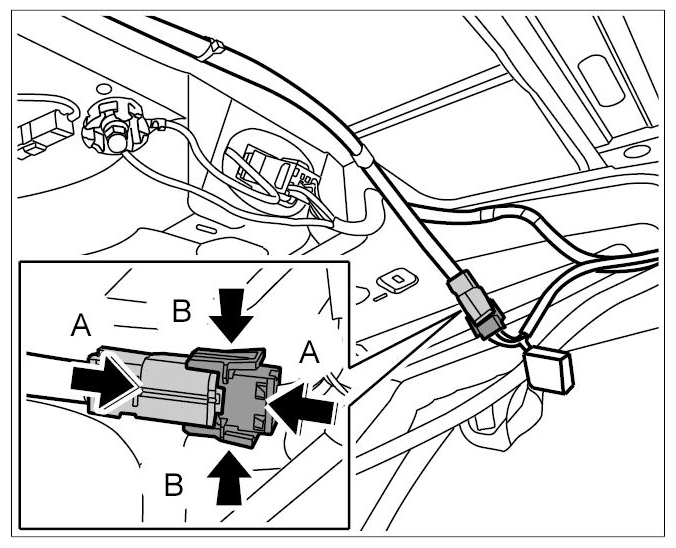

Connect plug connection (roof rack rear) -Arrows A- until locking tabs -B- are felt to engage.

Fig 1: Connecting Plug Connection (Roof Rack Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

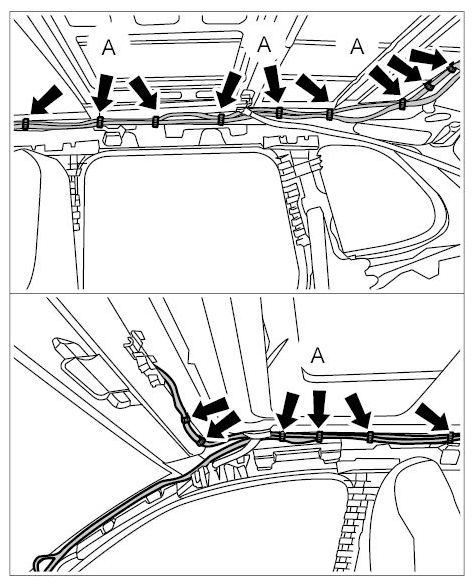

Fasten lead with new tie-wraps -arrows- .

Fig 2: Fastening Lead Using Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install rear roof trim panel → Removing roof lining .
