Installing Main Wiring Harness - Right Roof Area

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install main wire harness - dashboard area and centre console → Removing Main Wiring Harness .

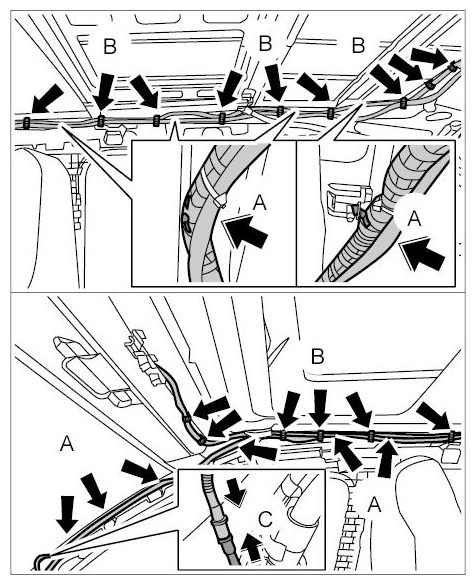

Clip in wire harness -Arrows A- .

Fig 1: Clipping In Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten lead to sunroof with new tie-wraps -B- .
Connect the water line -Arrow C- .

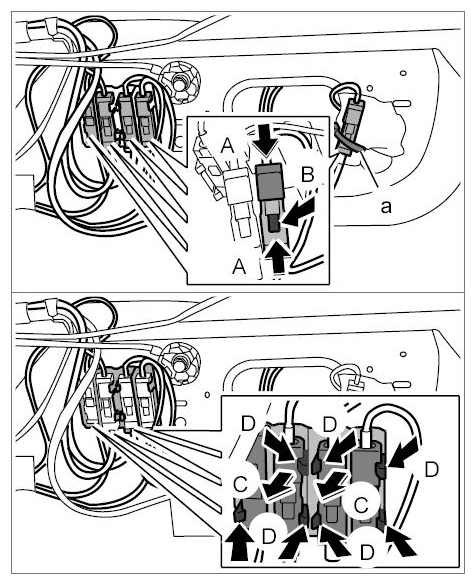

Connect antenna lines (roof rack rear) -Arrows A- until locking tabs -B- are felt to engage.

Fig 2: Connecting Antenna Lines (Roof Rack Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten line with a new tie-wrap -a- .
Press antenna lines into the bracket -Arrow C- until locking tabs are felt to engage -D- .

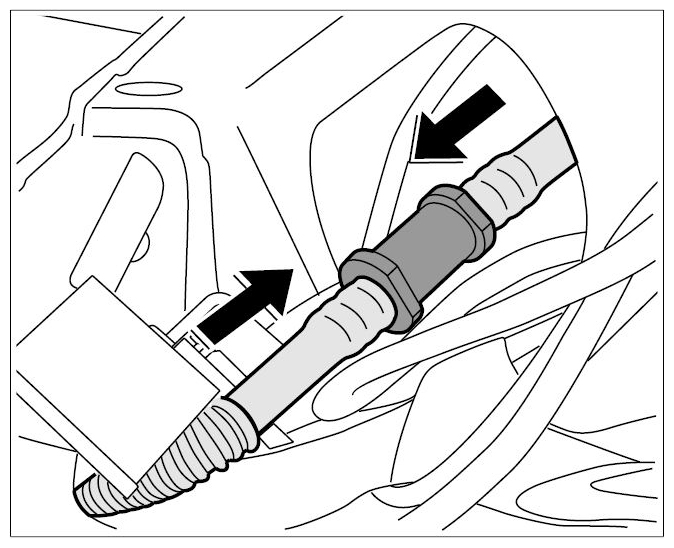

Connect the water line (roof rack rear) -arrows- .

Fig 3: Connecting Water Line (Roof Rack Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

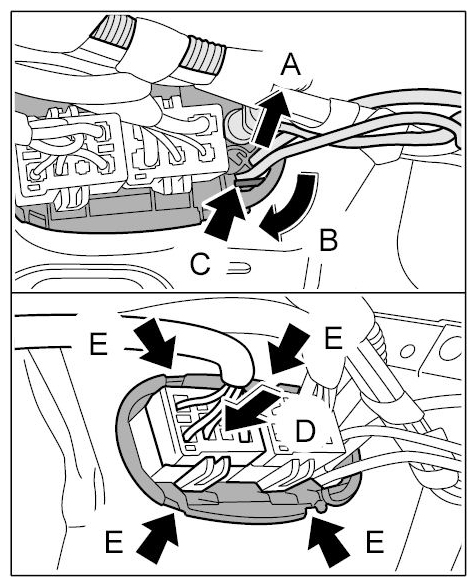

Insert line into the socket holder (roof rack rear) -Arrow A- .

Fig 4: Inserting Line Into Socket Holder (Roof Rack Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the holder -Arrow B- until the locking tab -C- is felt to engage.
Insert bracket into roof rack and press down -Arrow D- until locking tabs are felt to engage -E- .
