Removing Main Wiring Harness - Floor Area And Left-Hand Side: Overview
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
NOTE:
Incorrect handling of main wire harness
- Risk of damage to lines

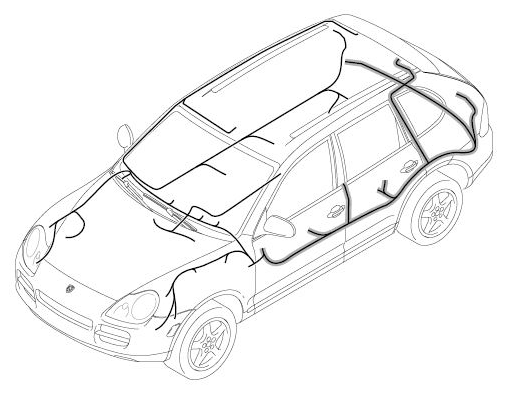

→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.
→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.
