WM 970919 Removing And Installing Main Wiring Harness - Engine Compartment (All Models): Information

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

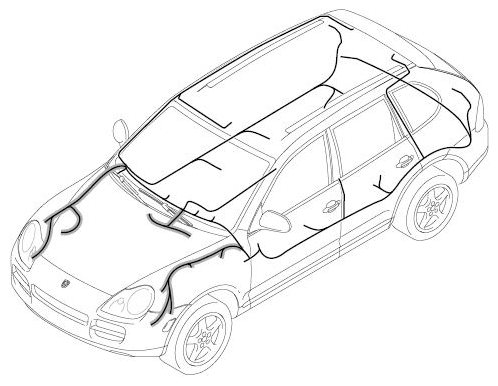

Fig 1: Identifying Main Wiring Harness - Engine Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

NOTE: Incorrect handling of main wire harness

Risk of damage to lines

→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.
