Removing Main Wiring Harness - Dashboard Area

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

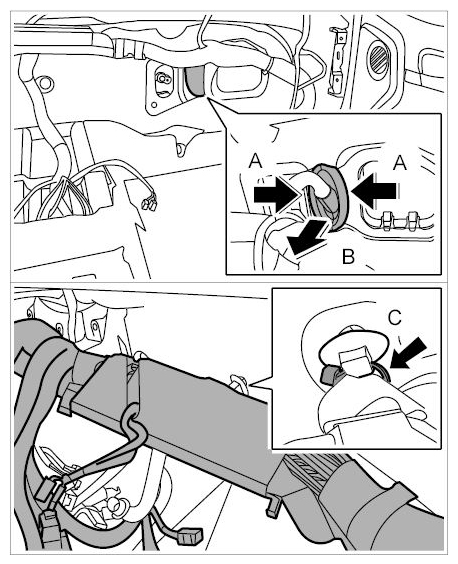

Compress right rubber sleeve -Arrows A- and remove it -Arrow B- .

Fig 1: Removing Right Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut tie-wrap -C- .

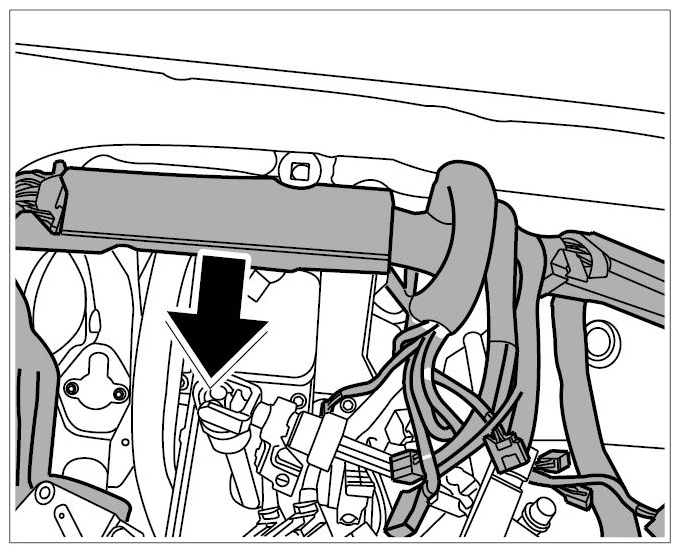

Remove wiring duct together with wire harness from pedal block -arrow- .

Fig 2: Removing Wiring Duct With Wire Harness From Pedal Block
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

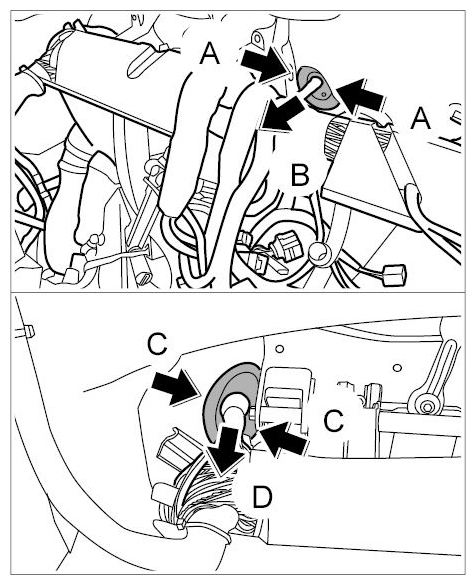

Press centre rubber sleeve together -Arrows A- and remove it -Arrow B- .

Fig 3: Removing Centre Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compress left rubber sleeve -Arrows C- and remove it -Arrow D- .

Remove main wiring harness - roof area. Remove fuse element for auxiliary battery → Removing Fuse Element For Auxiliary Battery

Remove main wire harness - floor area and left-hand side → Removing Main Wiring Harness - Floor Area And Left-Hand Side .

Remove main wire harness - floor area and right-hand side → Removing Main Wiring Harness - Floor Area And Right-Hand Side .

Remove main wire harness - engine compartment → Removing Main Wiring Harness - Engine Compartment .
