Removing Main Wiring Harness - Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .

Remove dashboard bracket → Removing bracket for the dashboard .

Remove heater/air-conditioning unit → Removing Heater/Air-Conditioning Unit .

Remove centre console → Removing Centre Console .

Unscrew fastening screws -Arrows A- and remove brackets -Arrows B- .

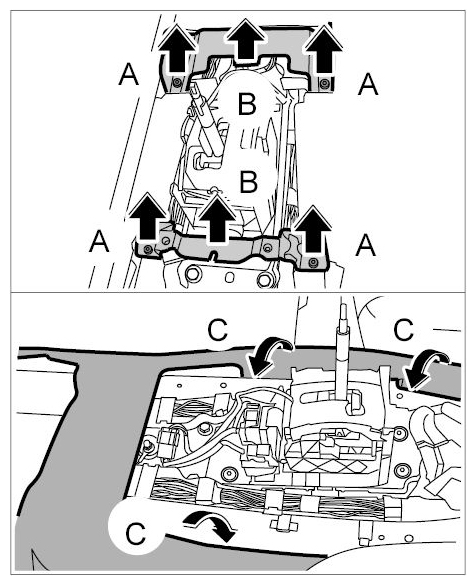

Fig 1: Removing Centre Console Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold down floor carpeting at centre console -Arrows C- .
Release securing clip -Arrow A- and open up -Arrow B- .

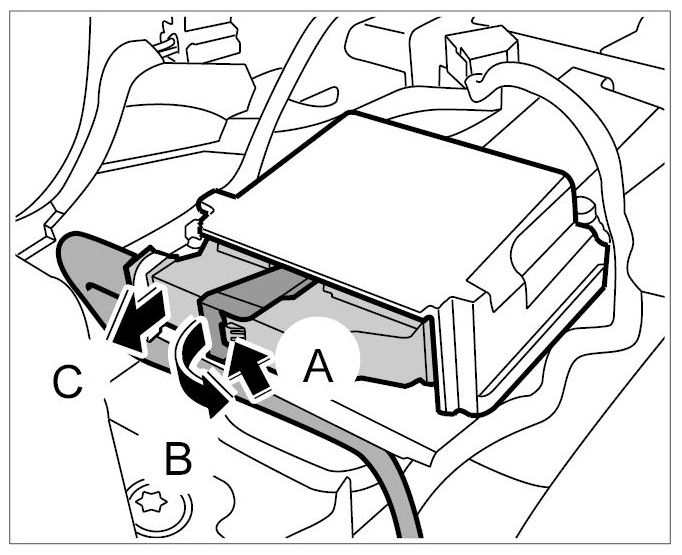

Fig 2: Removing Securing Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove connector from airbag triggering unit -Arrow C- .
Release connector -Arrow A- and disconnect it from the ESP multiple sensor -Arrow B- .

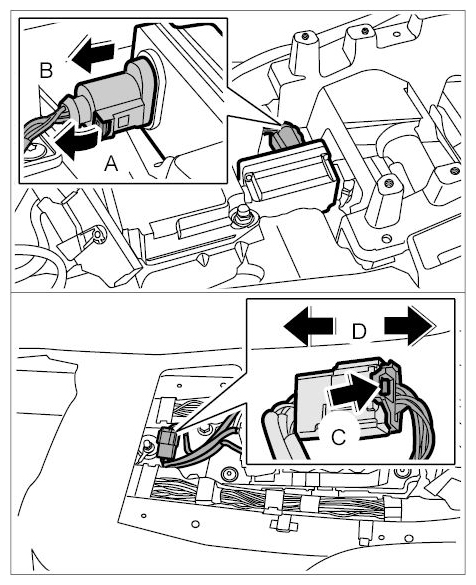

Fig 3: Removing Connector From Airbag Triggering Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug connection -Arrow C- and disconnect -Arrow D- .
Unscrew fastening nuts -1- and remove both ground straps together with twist locks -a- -arrow- .

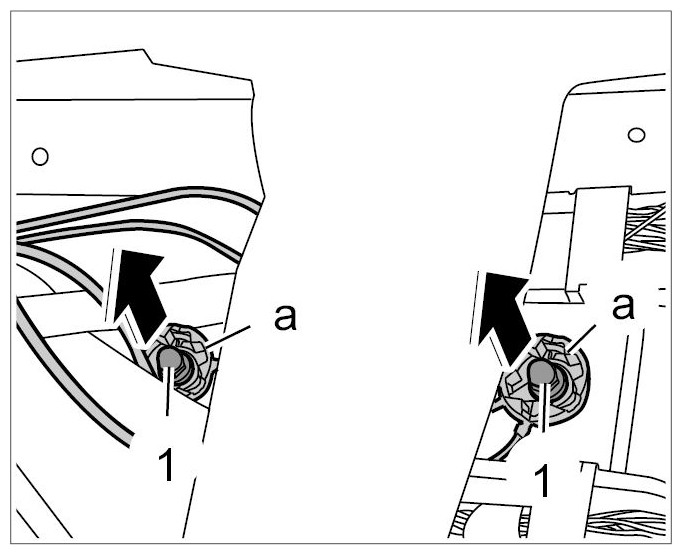

Fig 4: Removing Ground Straps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release covers of both wiring ducts -Arrow A- and open them -Arrow B- .

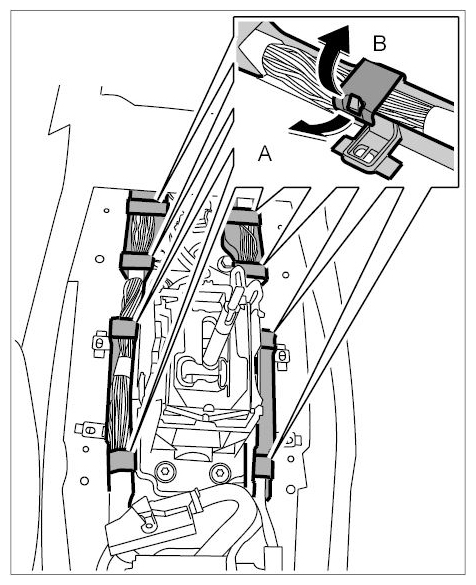

Fig 5: Removing Wiring Ducts Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip wire harness -Arrow A- and pull it up and out -Arrows B- .

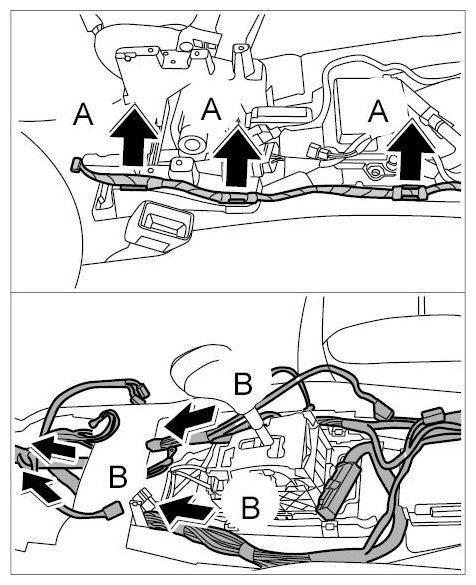

Fig 6: Pulling Wire Harness Up And Out
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
