Removing Main Wiring Harness: Information

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

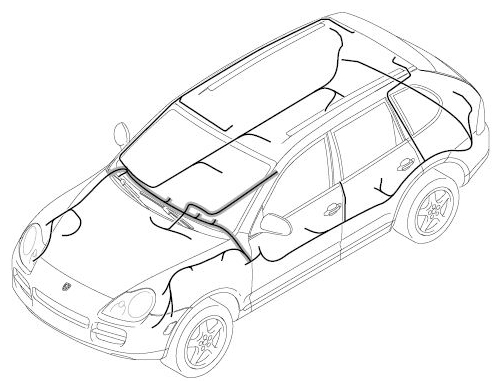

Fig 1: Identifying Vehicle Main Wiring Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The main wire harness contains all the optical waveguides, airbag lines and antenna lines. The main wire harness must not be separated and is always replaced as a complete wire harness. If individual lines are damaged, shut off these lines and replace them with new lines along the original wire harness.
