Installing Cylinder Head Cover

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Before fitting the cylinder head cover, apply sealant 000 043 207 54 (status 02/09) as shown .

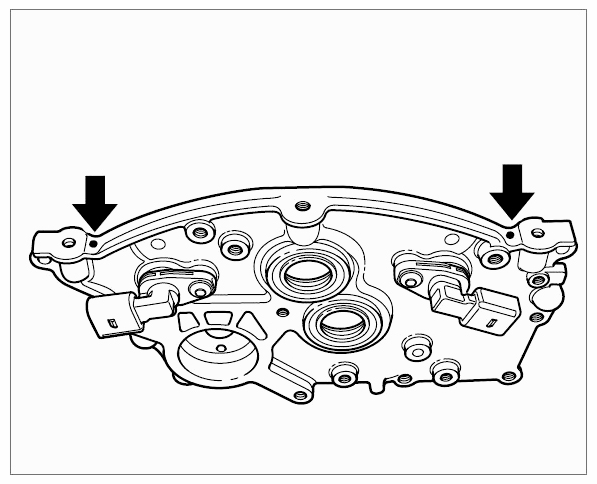

Fig 1: Locating Sealant Applying Area On Upper Timing-Case Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cylinder head cover (valve cover)
Information
- The seals on the ignition coil slots have a twist lock. These must be inserted into the corresponding cut-out on the cylinder head cover.
1. 2.1. Replace cylinder head cover gasket and shank seals.
2. 2.2. Tighten fastening screws -3- hand-tight.
  Information
  - The cylinder head cover must be tightened evenly in a clockwise direction!
  - The sealing rings of the M6 fastening screws with distance sleeve must be checked for damage and replaced if necessary!
3. 2.3. Tighten fastening screws as shown. → Tightening torque: 10 Nm (7.5 ft lbs.)

  Fig 2: Identifying Cylinder Head Cover Fastening Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Screw on oil cap.

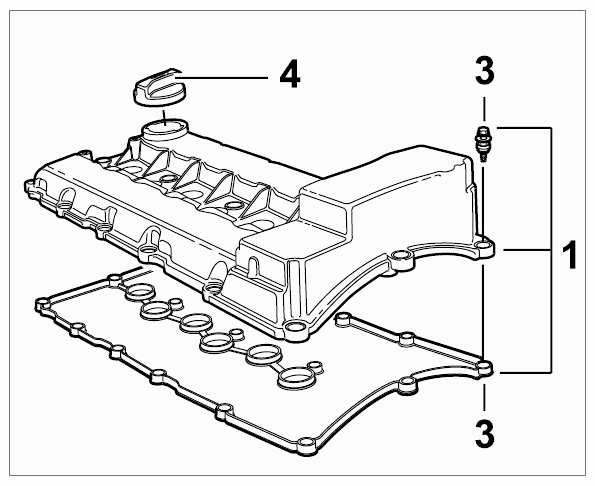

  Fig 3: Identifying Cylinder Head Cover, Oil Cap And Screws
