Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

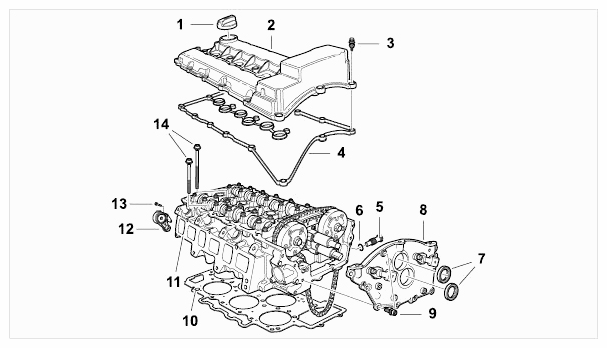

Fig 1: Overview Of Cylinder Head
G09409233Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil cap
  2. Cylinder head cover
  3. Fastening screws
  4. Cylinder head cover gasket
