Tools And Materials: Tools

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

It is best to use a tool that has an head height of less than 50 mm -A- (see SPECIAL TOOLS ) to loosen and tighten the rear fastening screw of the cylinder head cover close to the plenum panel.

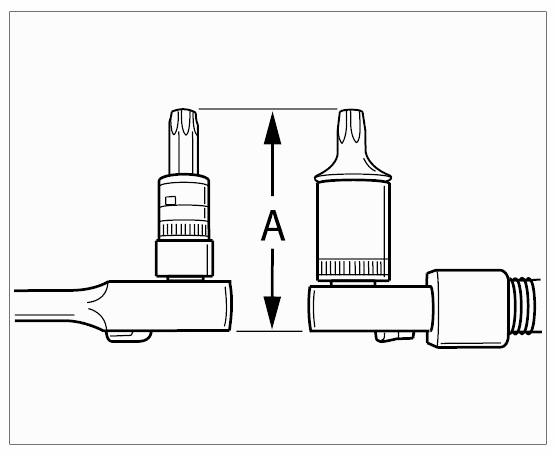

Fig 1: Identifying Tool Height

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

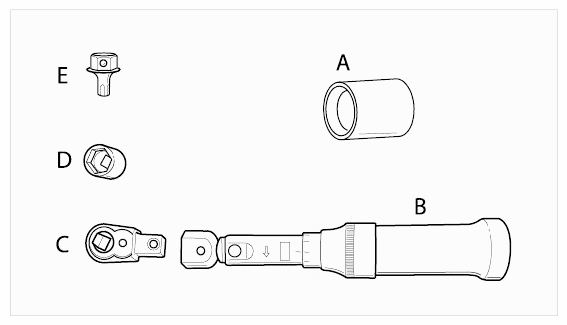

Fig 2: Identifying Special Tools

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item	Designation	Explanation
-A-	Centring sleeve 9701	Not absolutely necessary
-B-	Torque wrench 90
-C-	Socket change-over ratchet, 1/4 inch
-D-	Socket insert wrench (a/f 13), 1/4 inch
-E-	T40 inner hexagon socket bit
