Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

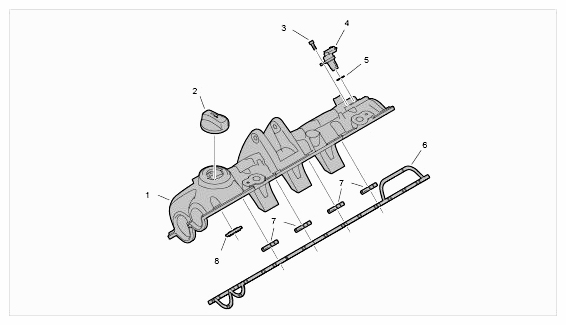

Fig 1: Exploded View Of Valve Cover Seals And Cylinders (1 To 4)
G09409436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Valve cover for cylinders 1 to 4 (align over bar ignition modules)
  2. Oil cap
  3. Screw, M6 x 16
  4. Hall sender
  5. O-ring
  6. Valve cover seal
  7. Valve cover seal, inner
  8. Seal for hydraulic valve for camshaft control

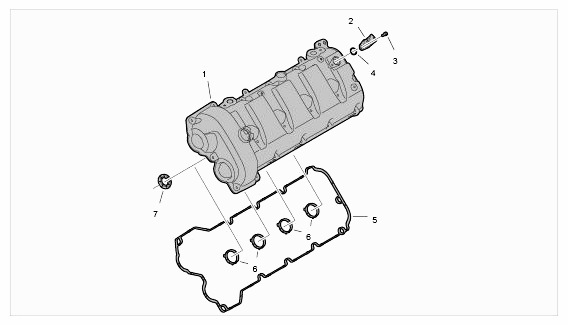

    Fig 2: Exploded View Of Valve Cover Seals And Cylinders (5 To 8)
    G09409437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Valve cover for cylinders 5 to 8 (align over bar ignition modules)
  2. Hall sender
  3. Screw, M6 x 16
  4. O-ring
  5. Valve cover seal
  6. Valve cover seal, inner
  7. Seal for hydraulic valve for camshaft control

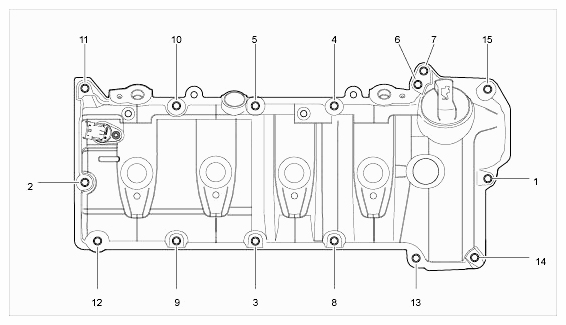

Fig 3: Identifying Valve Cover Screws Tightening Sequence (Cylinders 1 To 4)
G09409438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

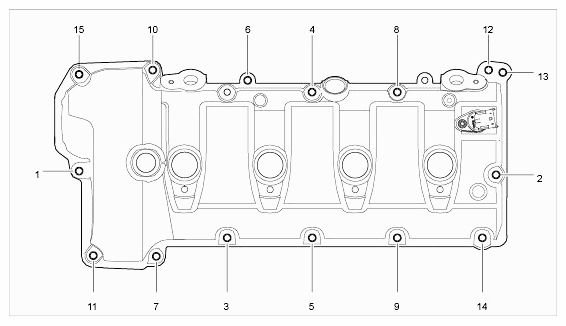

Fig 4: Identifying Valve Cover Screws Tightening Sequence (Cylinders 5 To 8)
G09409439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

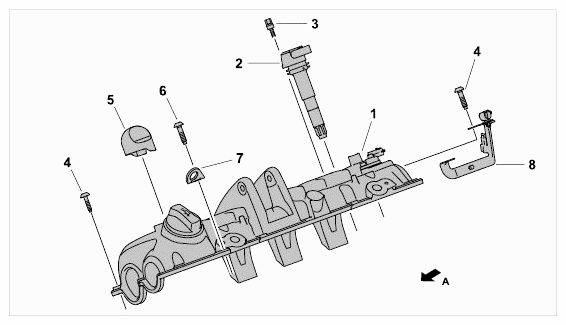

Fig 5: Exploded View Of Bar Ignition Modules And Valve Cover (Cylinder Bank 1 To 4)
G09409440Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Valve cover for cylinder bank 1 to 4 (align over bar ignition modules)
  2. Bar ignition module
  3. Screw for bar ignition module
  4. M6 screw
  5. Cap
  6. M8 screw
  7. Eyelet
  8. Sheetmetal holder
  1. Direction of travel
    • Not shown; design cover on bar ignition modules

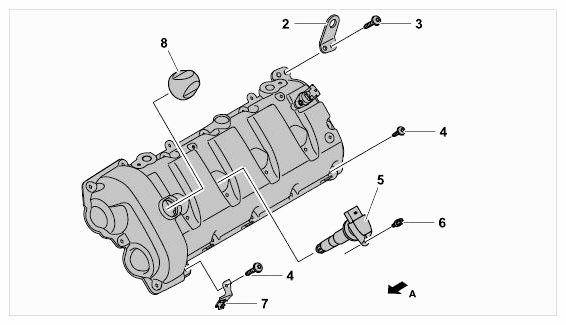

      Fig 6: Exploded View Of Bar Ignition Modules And Valve Cover (Cylinder Bank 5 To 8)
      G09409441Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Valve cover for cylinder bank 5 to 8 (align over bar ignition modules)
  2. Eyelet
  3. M8 screw
  4. M6 screw
  5. Bar ignition module
  6. Screw for bar ignition module
  7. Sheetmetal holder
  8. Cap
  1. Direction of travel
    • Not shown; design cover on bar ignition modules
