Special Tools

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

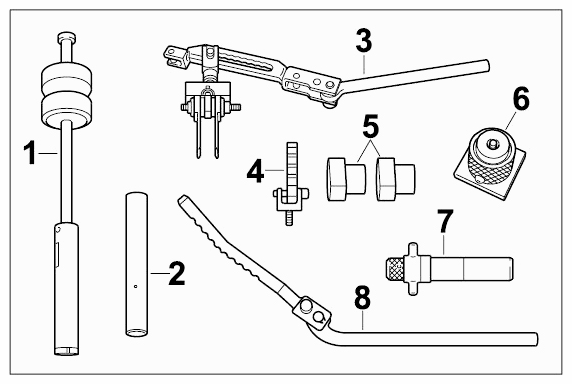

Fig 1: Identifying Special Tools For Valve
G09409357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Puller 3364  => only used to remove valve-stem seals.
  2. Assembly driver 9606/1  => only used to remove valve-stem seals.
  3. Universal assembly bar with universal assembly driver Tool for fitting/removing valve keys Nr.54 Pos.1
  4. Hooking piece (fitting hook) with holder (several possible)
  5. Plastic guide for inlet and outlet valve 31mm fastening screw Nr.54 Pos.1A  and 28mm fastening screw Nr.54 Pos.1B
  6. Assembly fixture for valve keys
  7. Assembly cartridge for valve keys
  8. Assembly bar (hook) with adjustable lever
