Installing Hydraulic Valve For Camshaft Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace sealing ring on hydraulic valve. Do not insert sealing ring twisted when fitting it.
  2. Coat sealing ring lightly with engine oil and insert the hydraulic valve into the cylinder head. Any installation position is possible.
  3. Fit and tighten fastening screws.

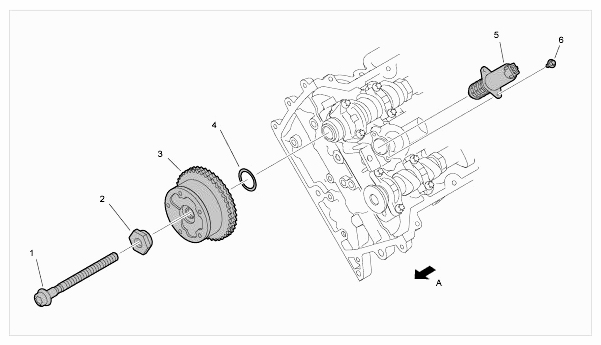

    Fig 1: Exploded View Of Camshaft Control
    G09409328Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Screw, M12
    2. Hexagon sleeve
    3. Camshaft controller
    4. Washer (reusable); replace if disassembled completely
    5. Camshaft control hydraulic valve
    6. Screw, M5 x 12 → Tightening torque: 6 Nm (4.5 ft lbs.)
    1. Direction of travel
