Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

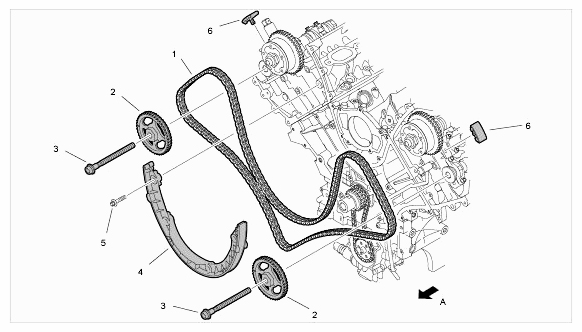

Fig 1: Exploded View Of Timing Chain And Sprockets
G09409317Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Double-chain camshaft drive
  2. Camshaft sprocket
  3. Screw, M12 x 140 Tighten completely after setting timing  .
  4. Deflector rail
  5. Screw, M8 x 35
  6. Camshaft-to-camshaft guide pad
  1. Direction of travel
