Installing Upper Timing-Case Cover: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If cold or excessively low-tempered components are sealed to each other by applying sealant, leaks can occur because of condensed water forming or components distorting. Components must be uniformly at least → Temperature: 17°C .

Apply a thin coating of sealing compound to the sealing faces of the upper timing-case cover.
1. 1.1. Seal face between upper timing-case cover and cylinder head cover.
2. 1.2. Tighten fastening screws - 2 - for timing-case cover by hand.
3. 1.3. Tighten fastening screws - 2 - → Tightening torque: 10 Nm (7.5 ft lbs.) for the timing-case cover.

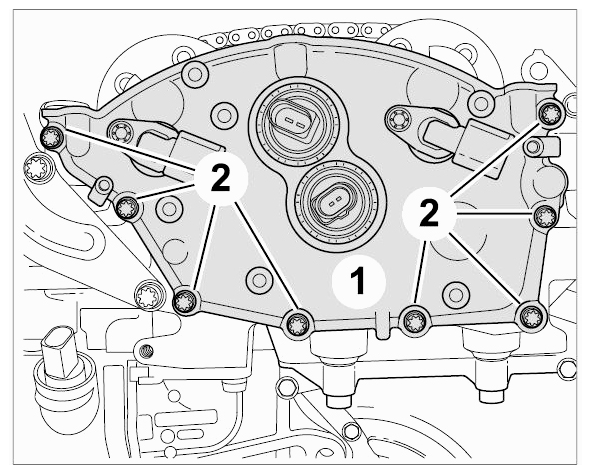

  Fig 1: Identifying Upper Timing-Case Cover Mounting Bolts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
