Securing Timing-Case Cover Up To October 2008

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the remaining fastening screws to the appropriate torque in the order shown.

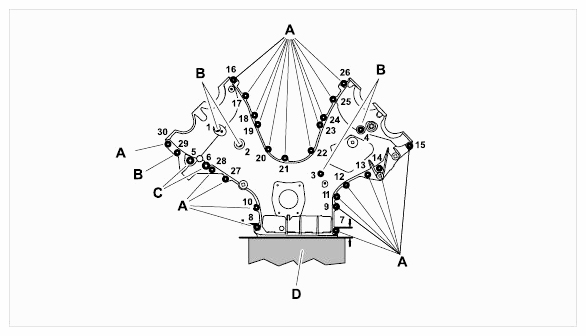

Fig 1: Timing-Case Cover Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Screw, M6 x 25 → Tightening torque: 13 Nm (9.5 ft lbs.)
2. Screw, M6 x 50; inner timing-case cover to upper part of crankcase and cylinder head → Tightening torque: 13 Nm (9.5 ft lbs.) ; timing-case cover to cylinder head → Tightening torque: 13 Nm (9.5 ft lbs.)
3. Screw, M8 x 50; timing-case cover (chain tensioner position) to upper part of crankcase and cylinder head → Tightening torque: 23 Nm (17 ft lbs.)
4. The timing-case cover must be level with the lower part of the crankcase (use a steel rule or dial gauge)
Carry out further assembly work =>
Secure cable duct at the front right.
1. 2.1. Route cable duct on the timing-case cover.
2. 2.2. Secure cable duct on the timing-case cover with the fastening screw -12- (-arrow-) . → Tightening torque: 10 Nm (7.5 ft lbs.)
3. 2.3. Fit guide tube with oil dipstick. → Installing guide tube for oil dipstick
4. 2.4. Secure oil dipstick with the fastening screw -11- (-arrow-). → Tightening torque: 10 Nm (7.5 ft lbs.)

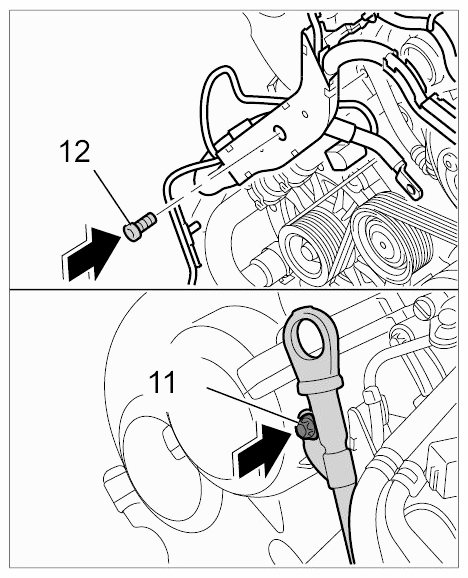

  Fig 2: Securing Oil Dipstick Using Fastening Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in vacuum lines at the cable duct -arrows- .

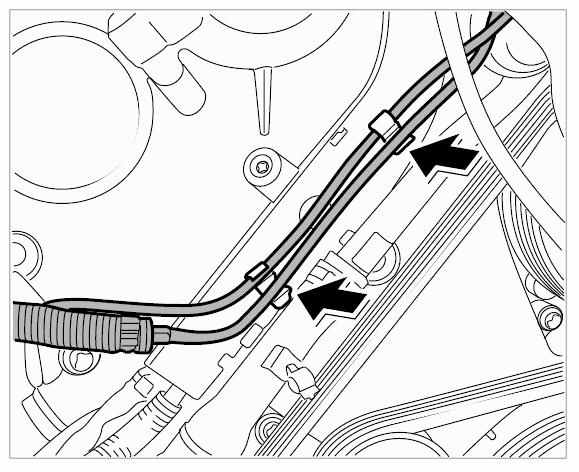

Fig 3: Clipping Vacuum Lines At Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit belt tensioner and deflection rollers on the timing-case cover. Fit screws and cover.

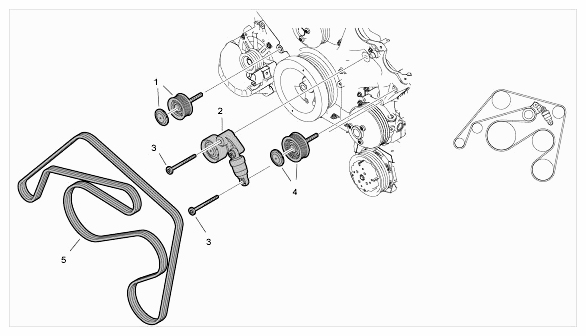

Fig 4: Exploded View Of Belt Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Deflection roller → Tightening torque: 32 Nm (24 ft lbs.)
2. Hydraulic belt tensioner; tensioner to lever → Tightening torque: 32 Nm (24 ft lbs.); tensioning roller to tensioning lever → Tightening torque: 32 Nm (24 ft lbs.)
3. Screw, M8 x 96; complete lever to timing-case cover and cylinder head → Tightening torque: 32 Nm (24 ft lbs.); belt tensioner and timing-case cover to bracket → Tightening torque: 32 Nm (24 ft lbs.)
4. Deflection roller → Tightening torque: 32 Nm (24 ft lbs.)
5. Dual poly V-belt
