Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

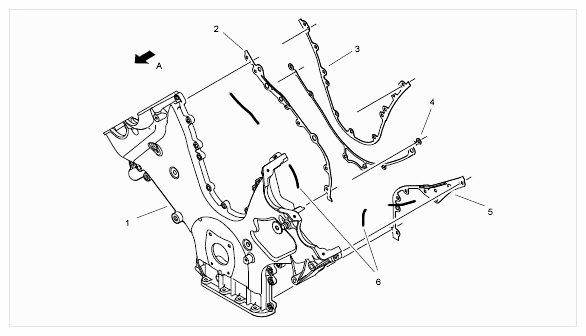

Fig 1: Exploded View Of Timing-Case Cover Seals
G09409296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Timing-case cover
  2. Timing-case cover seal, outer right (fill openings with sealant, see  6)
  3. Timing-case cover seal, inner
  4. Timing-case cover seal, rib
  5. Timing-case cover seal, outer left (fill openings with sealant, see 6)
  6. Applying sealant to timing chain housing; Loctite 5900 (000.043.204.35 status 04/07)
  1. Direction of travel

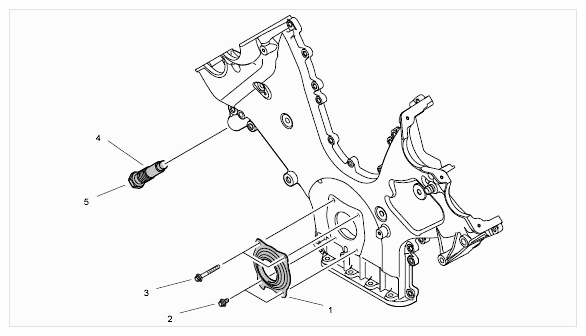

    Fig 2: Exploded View Of Chain Tensioner And Joint Flange
    G09409297Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Joint flange (oil sealing lip with engine oil); align with sleeve or vibration balancer
  2. M6 screw
  3. M6 screw
  4. Sealing ring
  5. Chain tensioner
