WM 150516 Setting Camshaft Timing On 4.8-Litre DFI Engines (Except CAYEENE Tip, Cayenne Man, Cayenne S Tip, Cayenne Diesel): Tools

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Designation Type Number Description

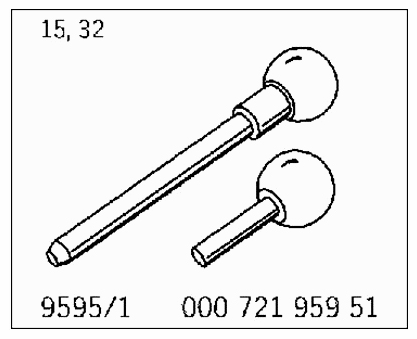

locating pins Special tool 9595/1
G09409248

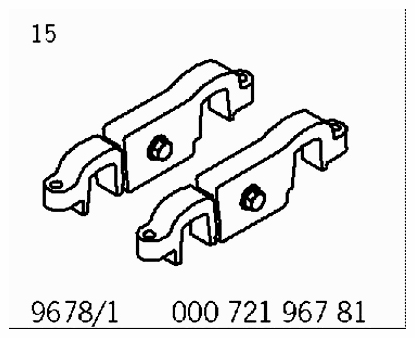

Staking tool Special tool 9678/1
G09409249

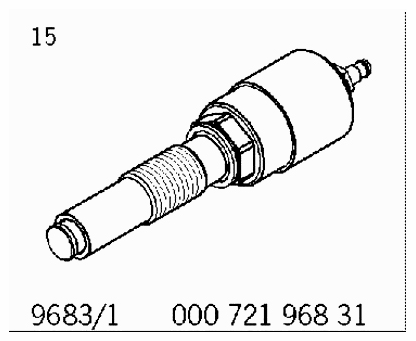

auxiliary chain tensioner Special tool 9683/1
G09409250
