Installing Oil Dipstick Guide Tube

Information

• The sealing ring on the guide must be replaced.

1. Replace sealing ring, apply a little grease to the ring and push it as far as it will go onto the guide tube -arrow-  . Remove the oil dipstick from the guide tube for the assembly work.

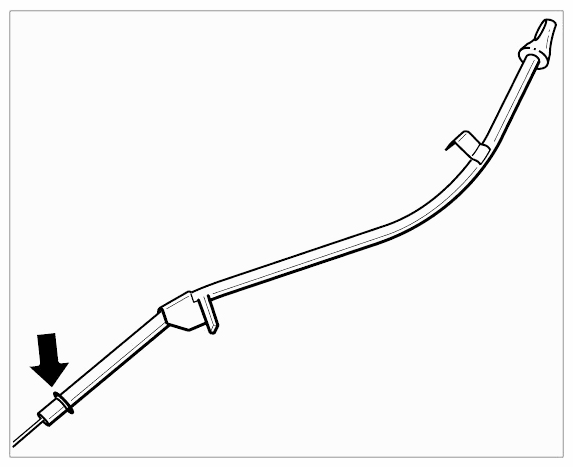

   Fig 1: Locating Oil Dipstick Guide Tube Sealing Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit cable plug of crankshaft pulse sender -arrow-  to the guide tube.

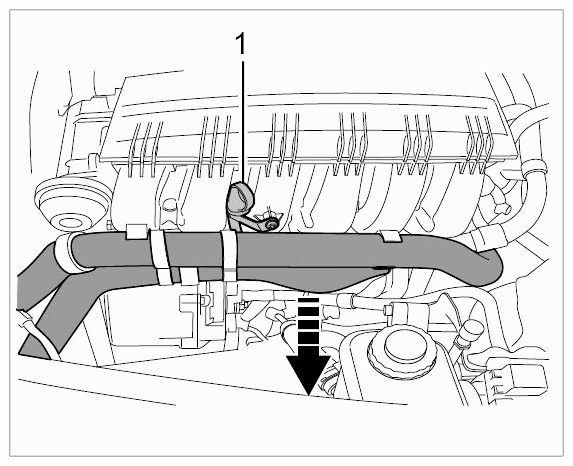

   Fig 2: Fitting Cable Plug Of Crankshaft Pulse Sender

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Illuminate the installation position well for fitting the guide.
3. Insert guide tube into the bore in the cylinder block. Align guide tube and fit fastening screw at the intake-air distributor. Tighten fastening screw. Coolant hoses → Tightening torque: 8 Nm (6 ft lbs.)

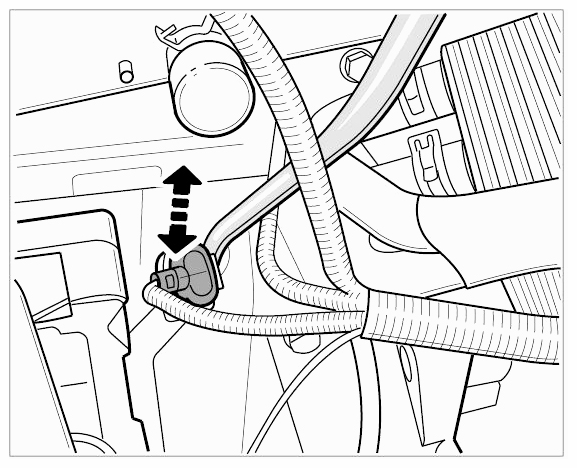

   Fig 3: Moving Coolant Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Move the two coolant hoses into installation position. Insert oil dipstick.
