Installing Oil Level Sensor
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Replace sealing ring for oil level sensor.

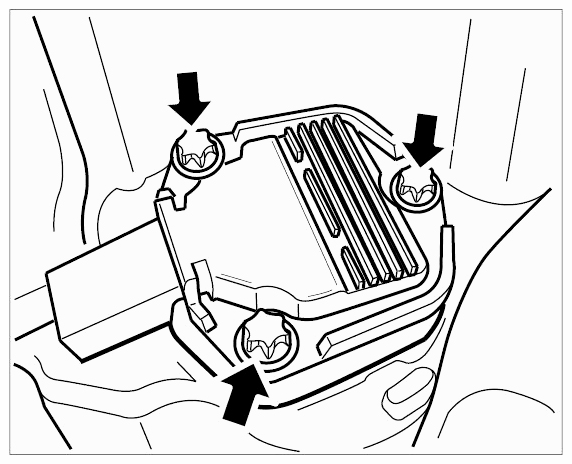

- Fit oil level sensor. Turn carefully when inserting sensor. Tighten the three fastening screws. → Tightening torque: 10 Nm (7.5 ft lbs.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Fit cable plug.
