Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil-pressure gauge and adapter again.
  2. Refit screw plug with new sealing ring. → Tightening torque: 15 Nm (11 ft lbs.)
  3. Fit deflection roller between the vibration balancer and generator. Tighten the screw. Press on lid. -1-

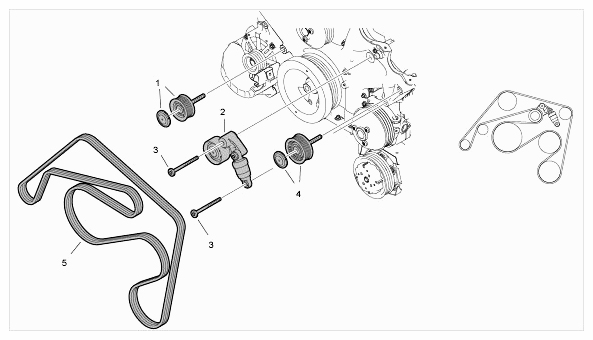

    Fig 1: Identifying Belt Drive
    G09409527Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Deflection roller → Tightening torque: 32 Nm (24 ft lbs.)+/-3 Nm (+/-2 ft lbs.)
    2. Hydraulic belt tensioner; tensioner to lever → Tightening torque: 32 Nm (24 ft lbs.)+/-3 Nm (+/-2 ft lbs.);  tensioning roller to tensioning lever → Tightening torque: 32 Nm (24 ft lbs.)+/-3 Nm (+/-2 ft lbs.)
    3. Screw, M8 x 96; complete lever to timing-case cover and cylinder head → Tightening torque: 32 Nm (24 ft lbs.)+/-3 Nm (+/-2 ft lbs.);  belt tensioner and timing-case cover to bracket → Tightening torque: 32 Nm (24 ft lbs.)+/-3 Nm (+/-2 ft lbs.)
    4. Deflection roller → Tightening torque: 32 Nm (24 ft lbs.)+/-3 Nm (+/-2 ft lbs.)
    5. Dual poly-V-belt
  4. Fit oil dipstick with guide tube and new sealing ring. → Installing Guide Tube For Oil Dipstick
  5. Fit drive belt. For details, see → Installing drive belt
  6. Fit Y-pipe or intake pipes upstream of the throttle valve. → Installing air box for throttle housing (intake pipe upstream of throttle valve)
