Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch ignition off and remove ignition key
  2. Separate the six bar ignition modules from the wire harness. To do this, press the connectors down slightly, release and remove them using the assembly tool T10118  or a suitable aid (e.g. an angled piece of wire). -1-

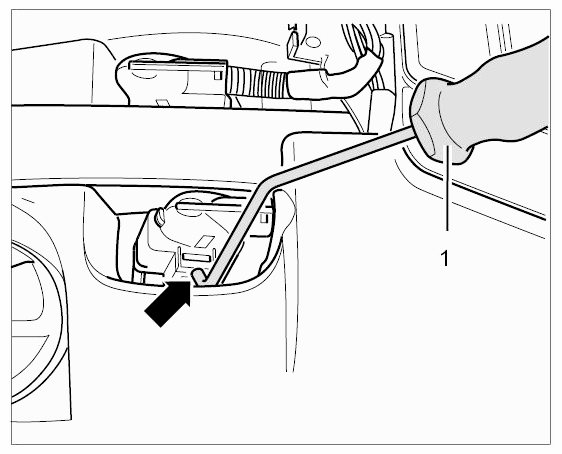

    Fig 1: Removing Cable Plugs
    G09410360Courtesy of PORSCHE CARS NORTH AMERICA, INC.
