Removing Ignition Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

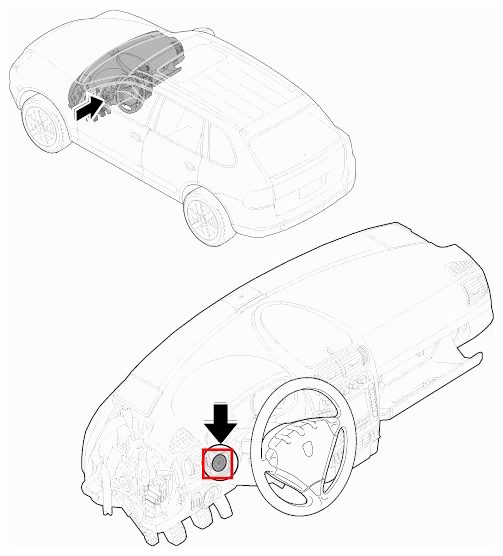

Fig 1: Overview Of Ignition Starter Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully lift rubber sleeve on the ignition starter switch -arrow A- using a screwdriver, for example, and remove it.

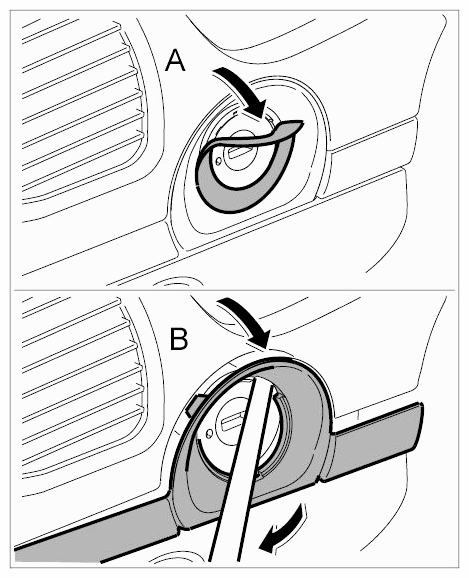

Fig 2: Removing Rubber Sleeve On Ignition Starter Switch Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully unclip molding for dashboard -arrow B- with a plastic spatula. Observe the two upper lugs when doing do.
Turn union nut using a narrow plastic spatula, for example, or using the special wrench T10152 tool and unscrew the ring from the ignition starter switch.

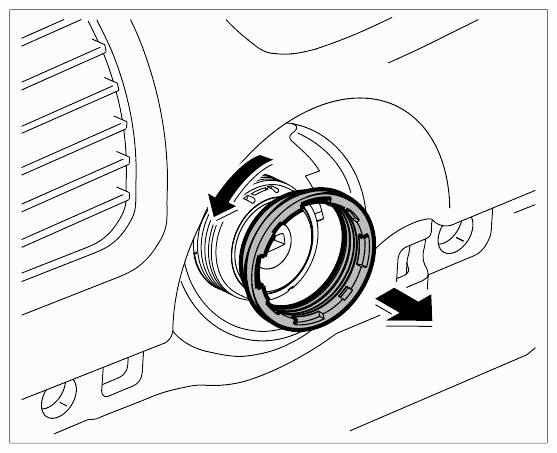

Fig 3: Turning Union Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press ignition switch inwards and remove towards the bottom.
Press connector -arrow- and pull off from ignition starter switch.

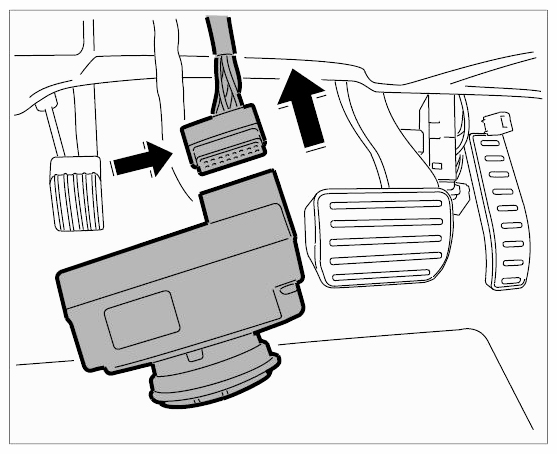

Fig 4: Removing Ignition Starter Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
