Installing Ignition Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Connect the connector to the ignition starter switch until it engages firmly.

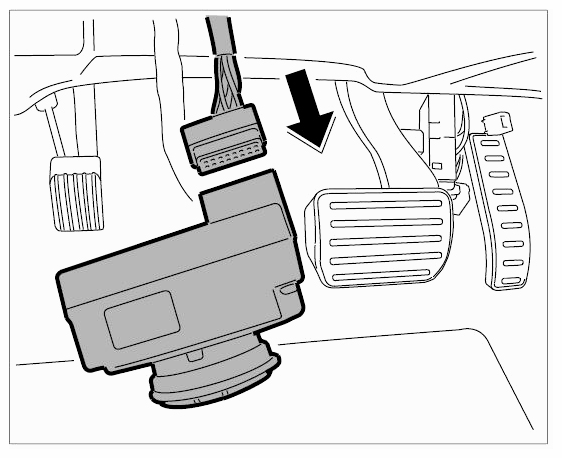

Fig 1: Pushing Connector Onto Ignition Starter Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position ignition starter switch in the dashboard. Position union nut, re-adjust switch and tighten union nut using wrench T10152. → Tightening torque: 1.6 Nm

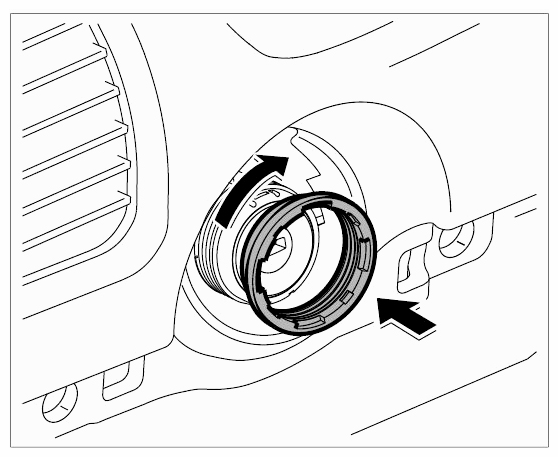

Fig 2: Positioning Union Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check clips on the molding for the dashboard for damage and replace if necessary.

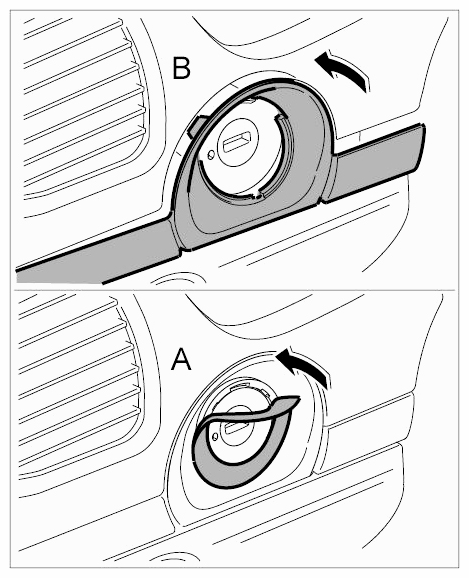

Fig 3: Checking Clips On Molding For Dashboard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position molding and press onto the dashboard until the clips engage.
