Emergency Operation Of The Ignition Key Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Push a ball-point pen, for example, into the opening next to the key, turn the ignition key to position 0 and pull out.

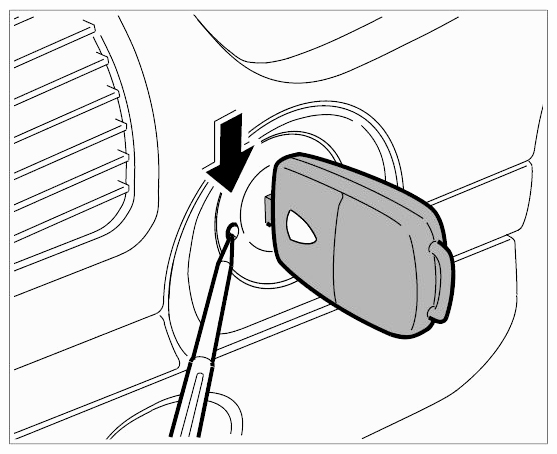

    Fig 1: Removing Ignition Key
    G09410356Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Key in position 0, press release -arrow-  and pull key out.

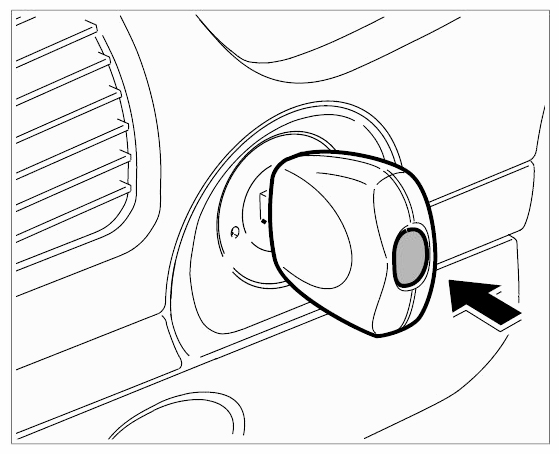

    Fig 2: Pressing Key
    G09410357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
