Removing Main Catalytic Converter On Cylinder Bank 5 To 8

→ Let hot components cool down.

→ Wear personal protective gear.

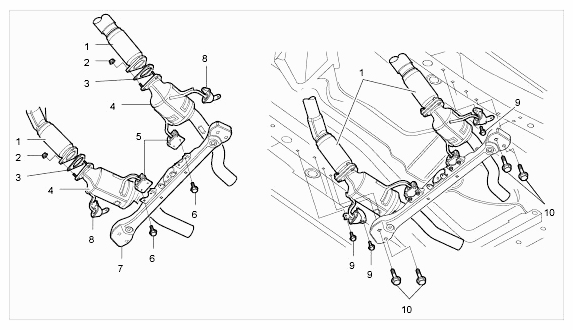

Fig 1: Identifying Main Catalytic Converters Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• 1 - Primary catalytic converter
• 2 - Nut; replace
• 3 - Seal
• 4 - Main catalytic converter
• 5 - Holder on transmission cross member
• 6 - Bolts
• 7 - Transmission cross member
• 8 - Holder on the body
• 9 - Bolts
• 10 - Screws on transmission cross member

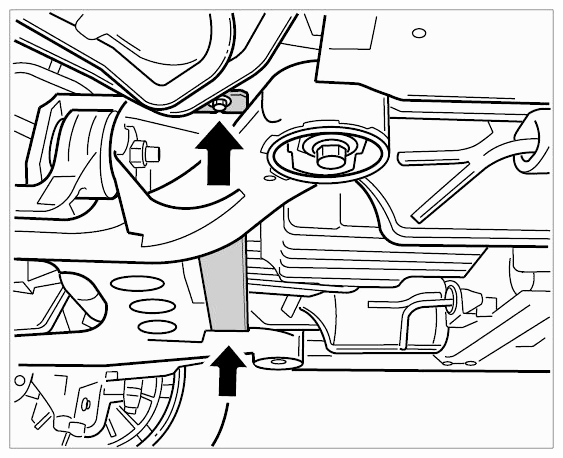

1. Remove transverse strut. Undo the screws -arrows-  (do not forget the centre screw).
   Fig 2: Removing Transverse Strut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

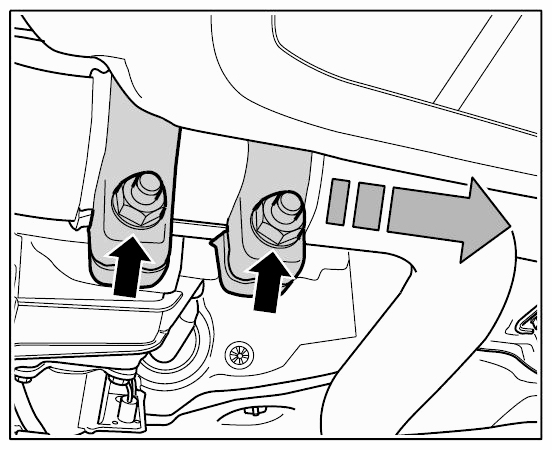

2. Release the connecting clamps between the catalytic converters and the exhaust system. Then slide the clamps backwards onto the exhaust system. .
   Fig 3: Removing Connecting Clamps Between Catalytic Converters And Exhaust System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

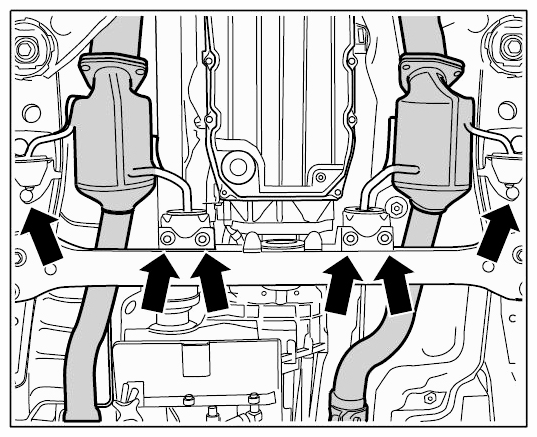

3. Loosen the catalytic converter holders on the body and on the cross member (two screws on each). -arrows-
   Fig 4: Locating Fastening Screws To Body And Cross Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

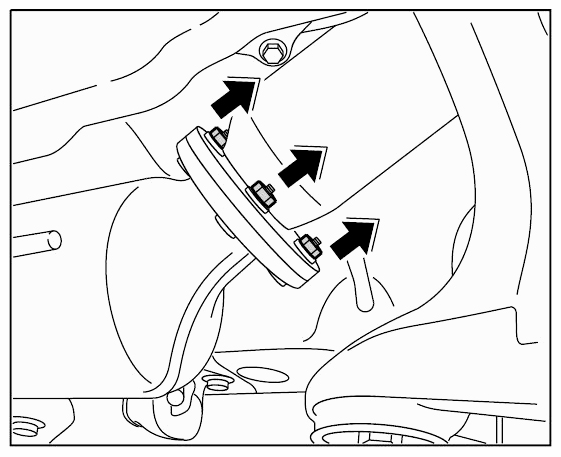

4. Carefully allow the main catalytic converter to hang down. Unscrew the three connecting nuts -arrows-  between the primary and main catalytic converters and remove the main catalytic converter. Remove flange gasket.

Fig 5: Removing Main Catalytic Converters

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
