Removing Main Catalytic Converter On Cylinder Bank 1 To 4 (Right)

→ Let hot components cool down.

→ Wear personal protective gear.

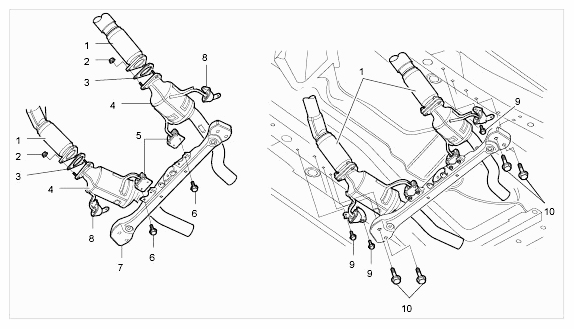

Fig 1: Identifying Main Catalytic Converters

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• 1 - Primary catalytic converter
• 2 - Nut; replace
• 3 - Seal
• 4 - Main catalytic converter
• 5 - Holder on transmission cross member
• 6 - Bolts
• 7 - Transmission cross member
• 8 - Holder on the body
• 9 - Bolts
• 10 - Screws on transmission cross member

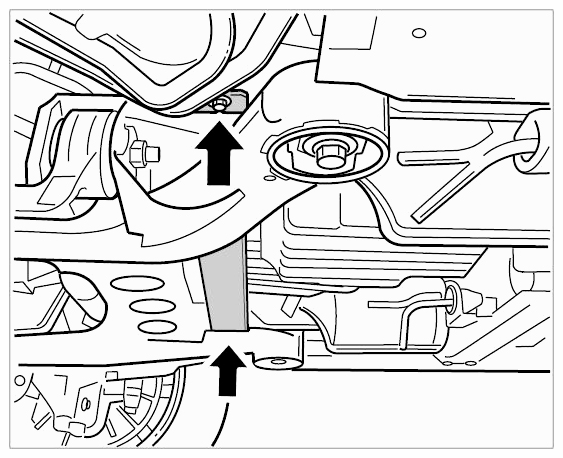

1. Remove transverse strut. Undo the screws -arrows-  (do not forget the centre screw).
   Fig 2: Removing Transverse Strut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

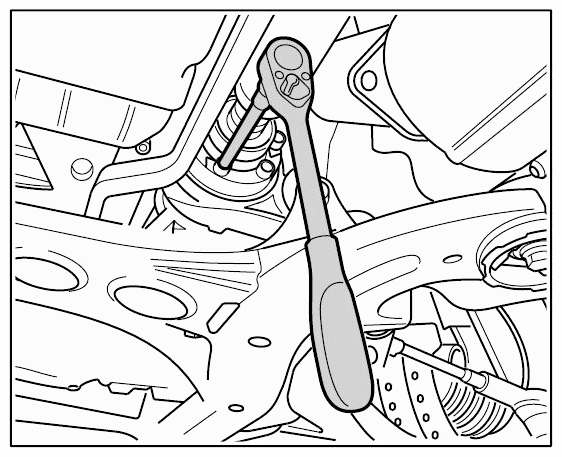

2. Remove the cardan shaft between the front-wheel drive and transfer gear -siehe illustration-  . → Removing front cardan shaft
   Fig 3: Removing Cardan Shaft Between Front-Wheel Drive And Transfer Gear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

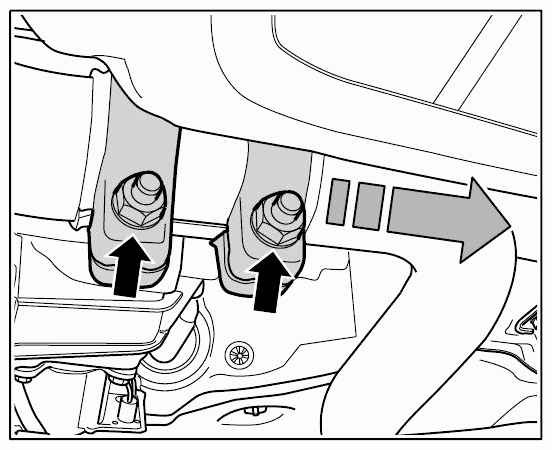

3. Release the connecting clamps between the catalytic converters and the exhaust system. Then slide the clamps backwards onto the exhaust system. .
   Fig 4: Locating Clamps Securing Catalytic Converter To Exhaust System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

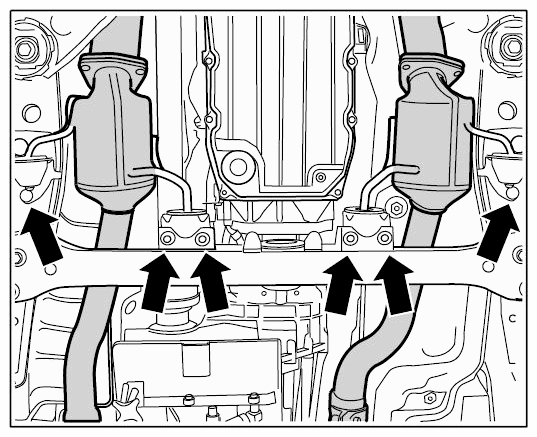

4. Loosen the catalytic converter holders on the body and on the transmission support (two screws on each).
   Fig 5: Locating Fastening Screws On Body And Cross Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Support the transmission with a transmission jack. Remove transmission support. → Removing Wire Harness In Transmission

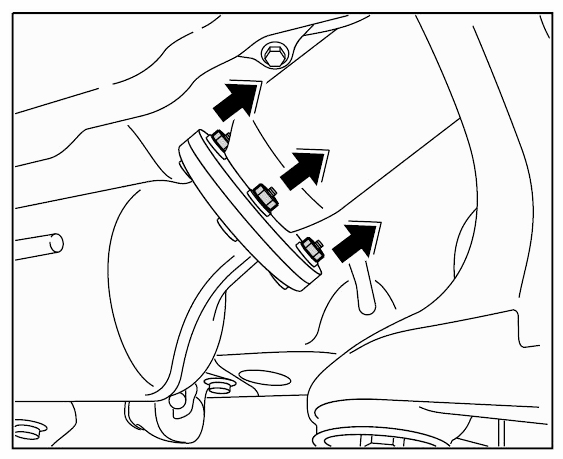

6. Carefully allow the main catalytic converter to hang down. Unscrew the three connecting nuts between the primary and main catalytic converters -arrows-  . Remove main catalytic converter. Remove flange gasket.
   Fig 6: Removing Main Catalytic Converters

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • If the working height of the vehicle has to be changed due to further work, the transmission support must be re-fitted using the old bolts.
7. Refit the transmission cross member using the old screws so that you can remove the transmission jack from under the vehicle.
