Subsequent Work
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Install lower side cover of rear apron.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

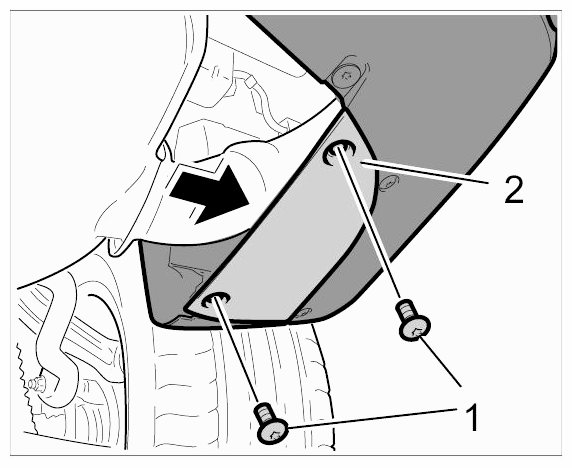

- 1.1. Place cover -2-
on the rear apron -arrow-
and align it.
- 1.2. Tighten fastening screws -1-
. → Tightening torque: 4.5 Nm (3.5 ft lbs.)+/-0.5 Nm (+/-0.5 ft lbs.)
