Removing And Installing Tailpipes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

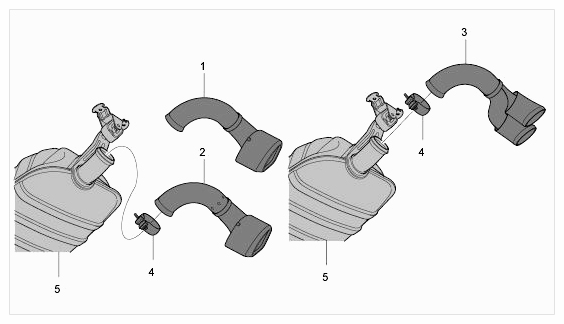

Fig 1: Identifying V6, V8 S And V8 Turbo Tailpipes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V6 tailpipe without bores
V8 S tailpipe with bores
V8 Turbo tailpipe with bores
Ball clamp
Rear silencer

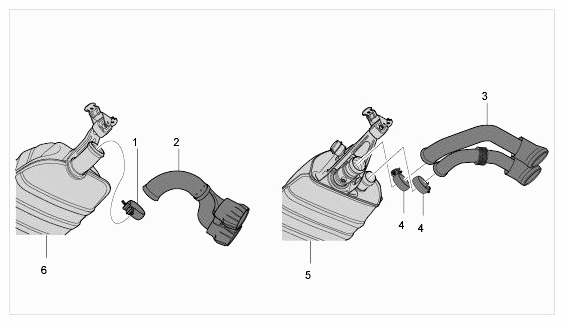

Fig 2: Identifying Exclusive And Sport Tailpipes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball clamp
Exclusive tailpipe
Sport tailpipe
Ball clamps
Sport rear silencer
Rear silencer

Loosen screw on ball clamp -1- . Open up ball clamp and slide it aside.

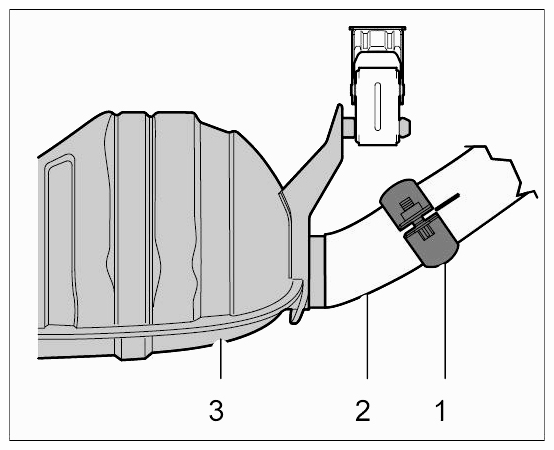

Fig 3: Identifying Ball Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen tailpipe and remove it towards the rear through the rear apron.
Clean extension positions and replace ball clamp.
Move tailpipes into installation position and align them. To do this, tighten ball clamp slightly, check the gap dimensions, align the tailpipes and then tighten the ball clamp. → Adjusting And Aligning Tailpipes

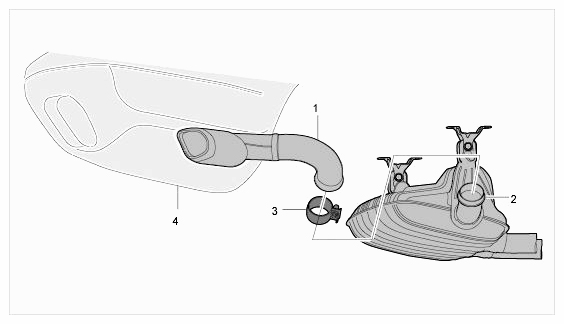

Fig 4: Identifying Installation Position Of V6 And V8 S Tailpipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Tailpipe
2. Rear silencer
3. Ball clamp
4. Rear apron
