Removing Rear Silencer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Use a transmission jack to prevent the rear silencer from falling as you would for the complete exhaust system.

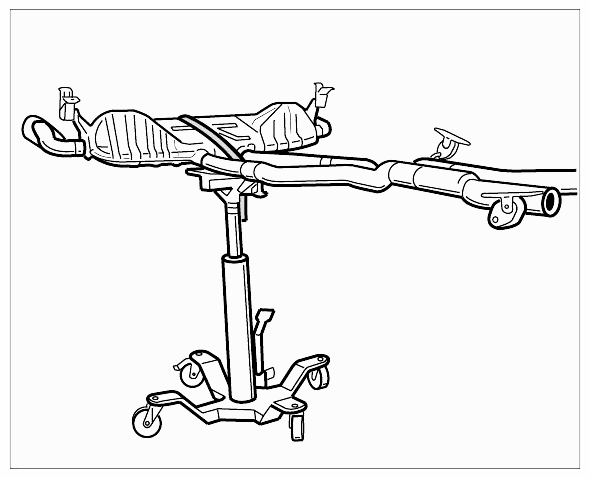

Fig 1: Securing Exhaust System Using Transmission Jack
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
There is a small notch on the underside of the exhaust pipes that is level with the rear axle transmission. The notch marks the connection point. -arrow-

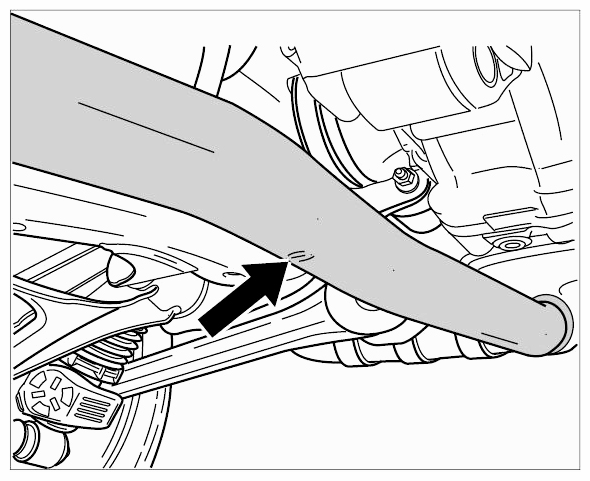

Fig 2: Locating Rear Axle Transmission Connection Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place the pipe cutter chain pipe cutter Nr.166 or ratchet pipe cutter Nr.166-1 (or similar tool) around the exhaust pipe near the notch and engage in the other end of the pipe cutter. Then clamp the chain firmly by twisting the handle.

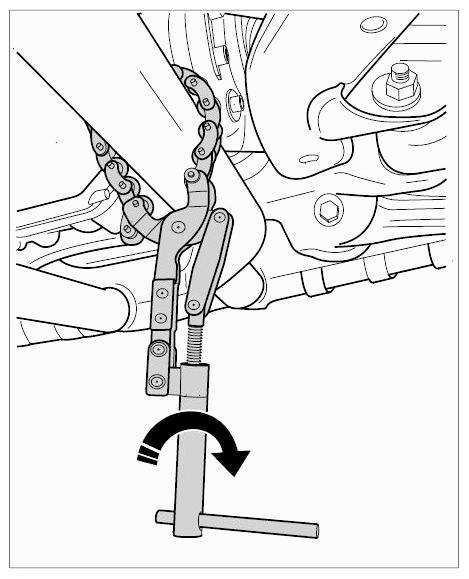

Fig 3: Placing Pipe Cutter Chain On Exhaust Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel the pipe cutter to and fro in wide movements until the pipe is cut through. While doing this, keep tightening the chain by twisting the handle.

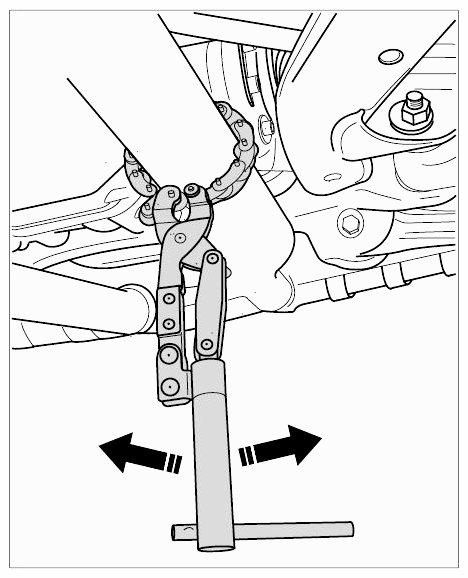

Fig 4: Cutting Pipe Using Pipe Cutter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Then cut through the second exhaust pipe.
Loosen fastening screws on rear silencer and lower or remove rear silencer. -2-

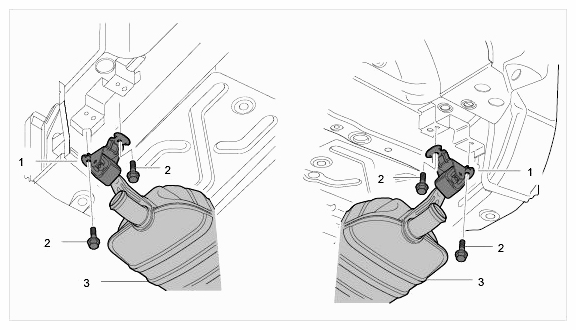

Fig 5: Identifying Rear Silencer Mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
