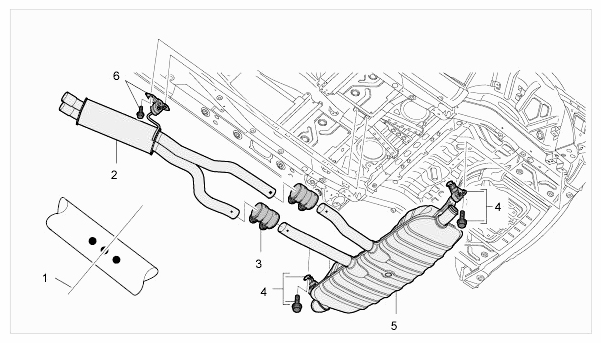

Component Overview
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Impression in exhaust pipe; service connection point
- Middle/front silencer
- Pipe clamp, only use once
- Rear silencer holder with M8 screws
- Rear silencer
- Exhaust pipe holder with M8 screws
