Removing Exhaust Manifold

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heat protection panel.

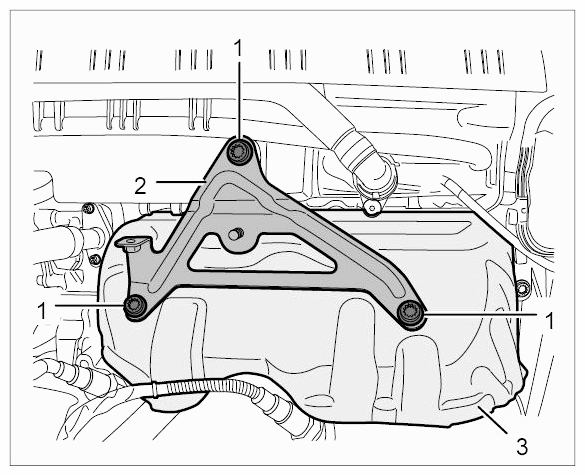

    Fig 1: Identifying Heat Protection Panel Mounting
    G09410204Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Fastening screws
    2. Holder
    3. Heat protection panel
    1. 1.1. Loosen the fastening screws -1-  .
    2. 1.2. Remove the holder -2-  and then remove the heat protection panel -3-  .
    3. 1.3. Unclip oxygen sensor cable on the heat protection panel.
  2. Remove exhaust manifold.

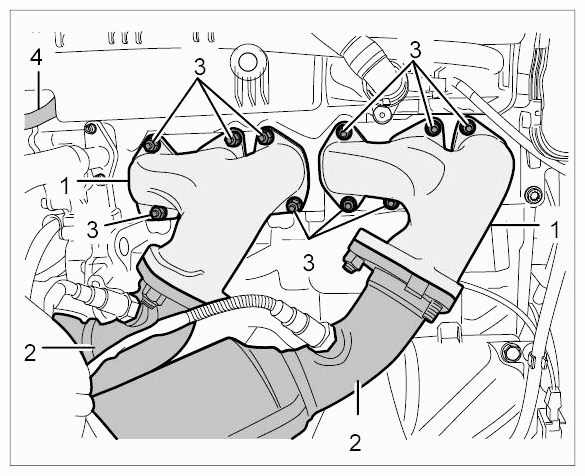

    Fig 2: Identifying Exhaust Manifold Related Components
    G09410205Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Exhaust manifold
    2. Primary catalytic converter
    3. Fastening nuts
    1. 2.1. Unscrew all fastening nuts between the primary catalytic converter and exhaust manifold.
    2. 2.2. Push the primary catalytic converter to one side.
    3. 2.3. Remove all fastening screws on the exhaust manifold.
    4. 2.4. Remove exhaust manifold from studs on the cylinder head.
