Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

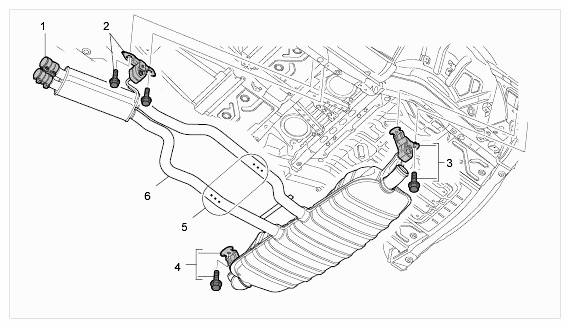

Fig 1: Identifying V6 Exhaust System
G09410183Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pipe clamp; only use once
  2. Exhaust pipe holder with M8 screws
  3. Rear silencer holder with M8 screws
  4. Rear silencer holder with M8 screws
  5. Service connection point => cut at pipe indent using pipe cutter
  6. Exhaust pipe
