Installing Vacuum Pump

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing rings -2, 3- on vacuum pump -1- .
Carefully loosen and lever off the sealing rings -2, 3- with a small screwdriver.

Clean contact surface of sealing rings -2, 3- and fit new sealing rings -2, 3- .

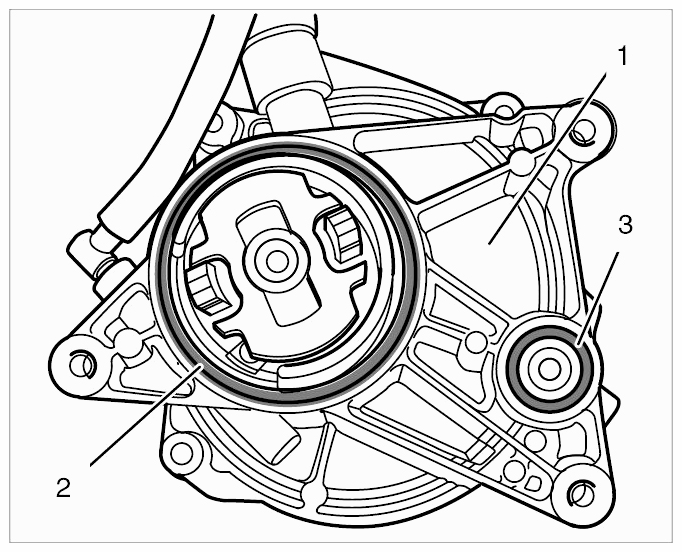

Fig 1: Identifying Vacuum Pump Sealing Rings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install vacuum pump.
1. 2.1. Clean mounting point before installation.
2. 2.2. Fit and secure the vacuum pump -1- .
  Align driver for vacuum pump -1- and fit the vacuum pump -1- . Screw in and tighten screws -2- .

  → Tightening torque: 10 Nm (7.5 ftlb.)

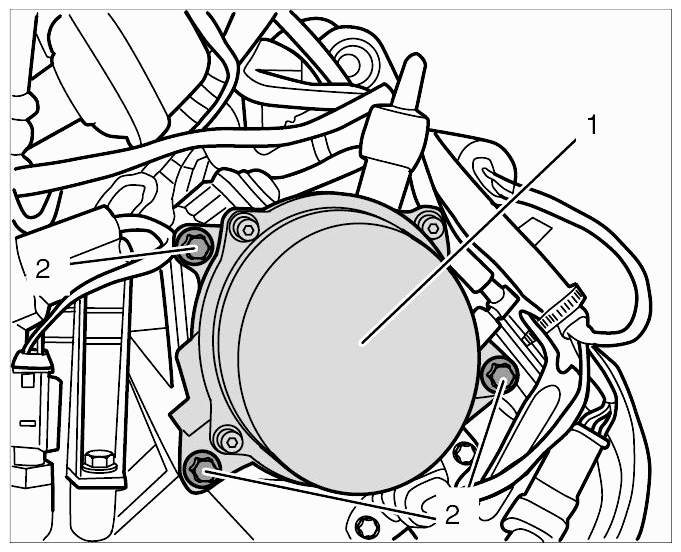

  Fig 2: Identifying Vacuum Pump (Mechanical)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Connect vacuum hose -2- .
  Push on vacuum hose -2- until the vacuum hose -2- locks with an audible click.

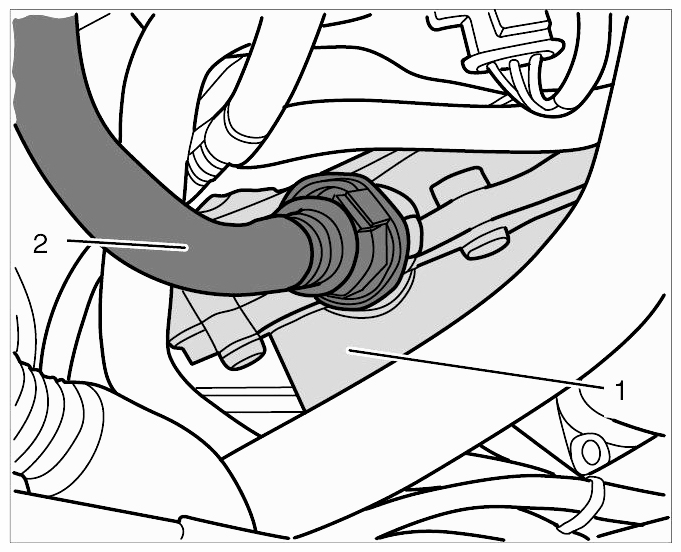

  Fig 3: Identifying Vacuum Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the electrical wire harness and right-hand engine compartment side panel.
1. 3.1. Secure coolant hose.
  Connect coolant hose -2- to right cylinder head cover -1- . To do this, close the retaining clip -3- .

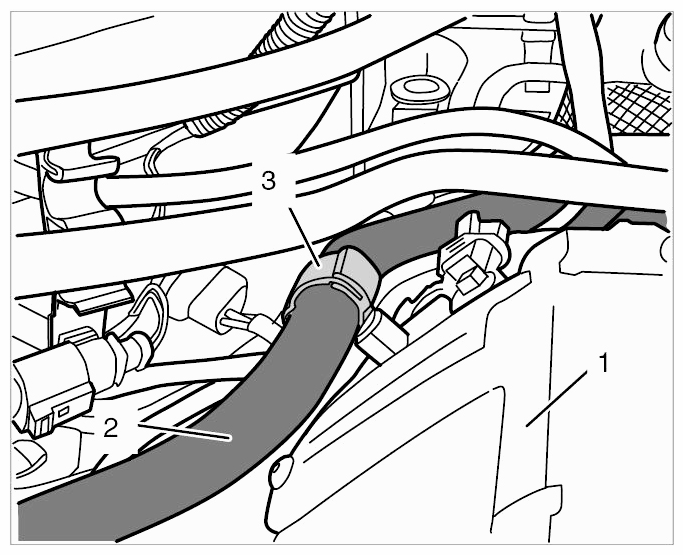

  Fig 4: Identifying Coolant Hoses
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Install right-hand engine compartment side panel -3- .
  Fit the right-hand engine compartment side panel -3- and ensure that the rubber seal is seated correctly.

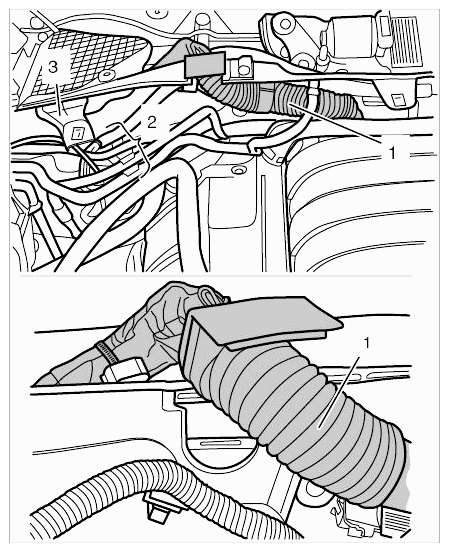

  Fig 5: Identifying Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Clip all hoses, vacuum lines and electrical lines -2- to the hose assembly holder on the right-hand engine compartment side panel.
4. 3.4. Secure the electric wire harness.
  Fit the wire harness -1- with rubber seal to the right-hand engine compartment side panel and close the holder.
