WM 477619 Removing And Installing Vacuum Pump (Cayenne S Tip, Cayenne S Man, Cayenne GTS Tip, Cayenne GTS, Cayenne Turbo S, Cayenne S TRANSSYBERIA Tip, Cayenne TRANSSYBERIA Man): Information

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

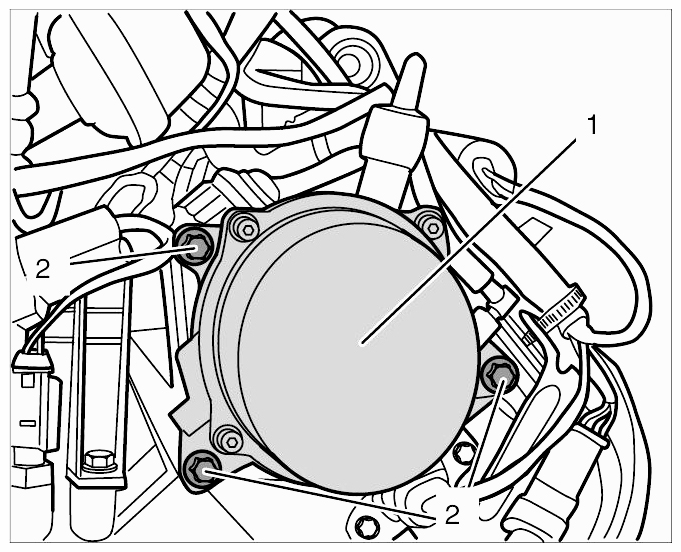

Fig 1: Identifying Vacuum Pump (Mechanical)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The vacuum pump -1- is fitted at the rear of the right cylinder head on the V8 engine.
