WM 477619 Removing And Installing V6 Vacuum Pump (Mechanically) (Cayenne Tip, Cayenne Man): Removal: Removing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

For easier access, unclip the electric lines behind the vacuum pump and carefully move them aside.
Carefully move the coolant hoses behind the vacuum pump aside using a wooden block (shop-made).

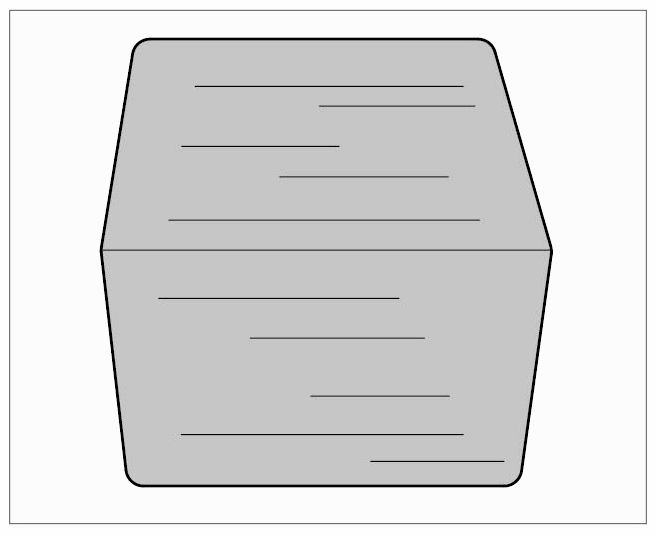

Fig 1: Identifying Wooden Block, Shop-Made (10 cm X 10 cm)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

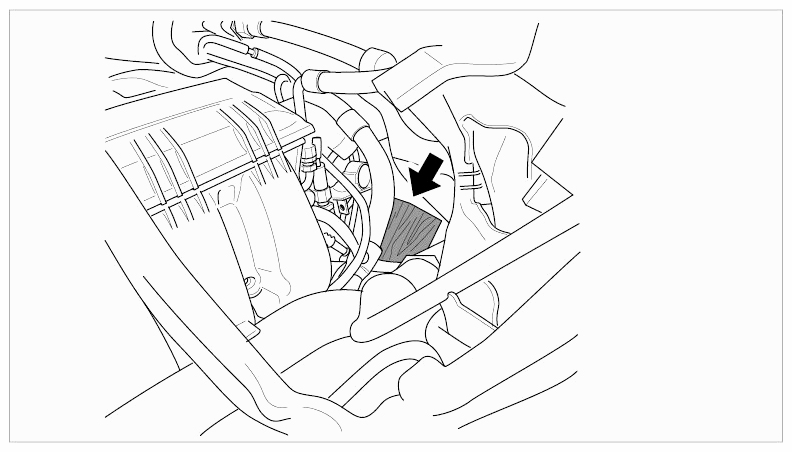

Fig 2: Locating Wooden Block Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Give the vacuum line -1- a strong pull, to pull it off.

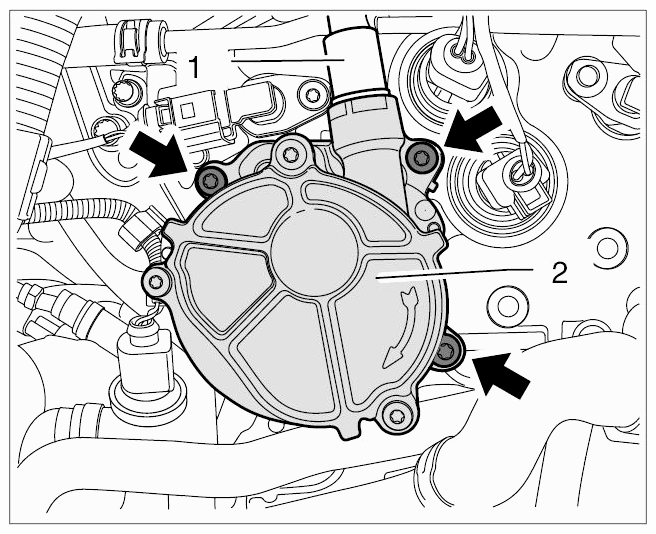

Loosen the three screws -arrows- on the vacuum pump -2- . Pay attention to the position of the screws when doing this (screw length!). The screw at the top right in direction of travel is short, the other two screws are long.

Fig 3: Locating Vacuum Pump Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

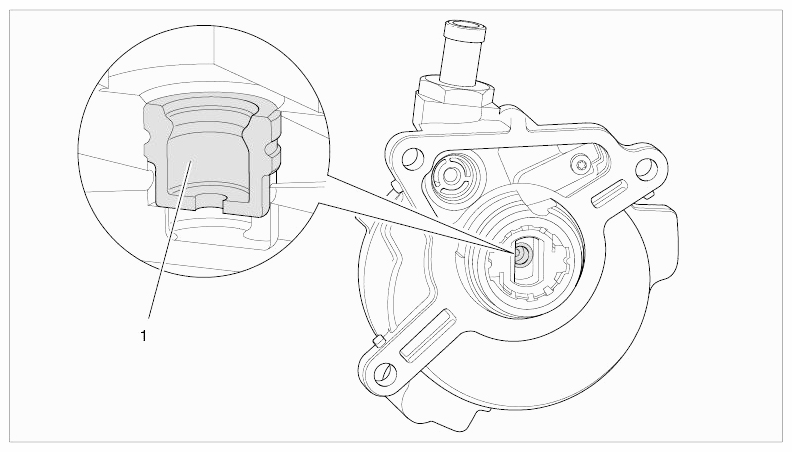

- When you remove the V6 vacuum pump, the sealing ring can remain on the drive shaft at the engine side. If this happens, the sealing ring must be removed from the drive shaft and inserted into the rotor of the vacuum pump at the correct position at the lower edge of the chamfer -1- .

  Fig 4: Identifying Vacuum Pump Assembly
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

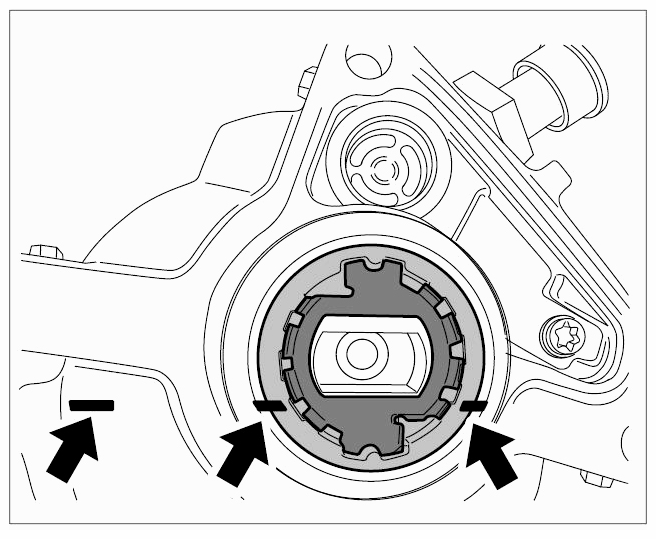

- When removing the V6 vacuum pump, always check that the rotor of the vacuum pump is not twisted when taking it out. Mark the position of the rotor immediately after removal with a marker, for example -arrows- !

  Fig 5: Locating Rotor Position Marked
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the vacuum pump carefully by pulling it to the rear.
