Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove front cover (engine compartment) at the left and rear. → 700219 REMOVING AND INSTALLING FRONT COVER (ENGINE COMPARTMENT)

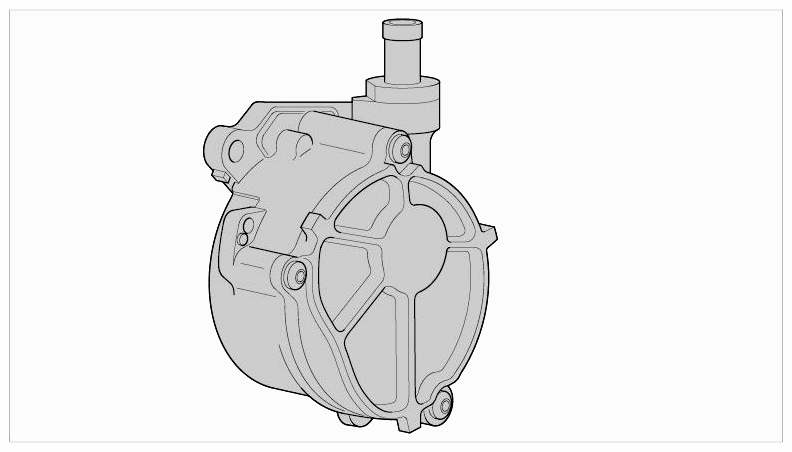

Fig 1: Identifying V6 Vacuum Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The vacuum pump is located on the cylinder head (cylinder 6) at the back, between the engine and plenum panel -arrow- .

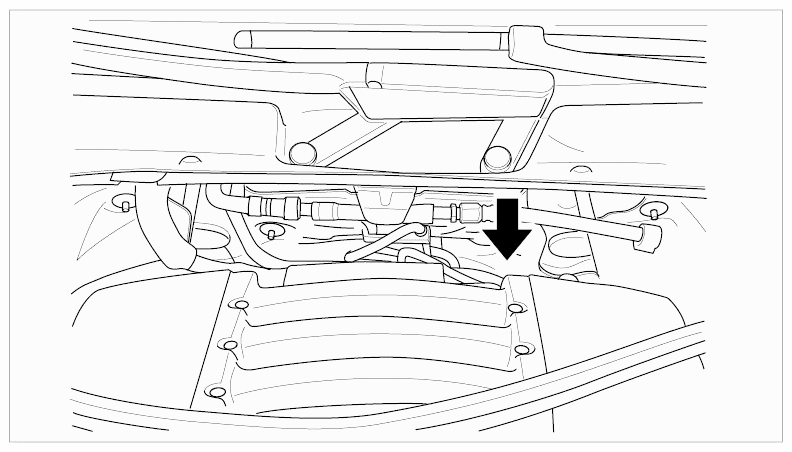

Fig 2: Locating Vacuum Pump In Engine Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
