WM 477601 Checking Vacuum Pump (Except Cayenne Tip, Cayenne Man, Cayenne Diesel): Information

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The vacuum pump creates the necessary vacuum for the following components and functions:

The variable intake system on naturally aspirated engines (secondary load).
Sports flap exhaust system (secondary load).
The tank leakage test on US vehicles (secondary load).
Wastegate control on turbo vehicles (secondary load).
Brake booster (main load - large connection)

Defects in the specified systems can be caused by a defective vacuum pump. To avoid replacing components based on suspected defects and repeat repairs, the function of the vacuum pump must be checked.

The vacuum pump -1- is fitted at the rear of the right cylinder head on V-engines.

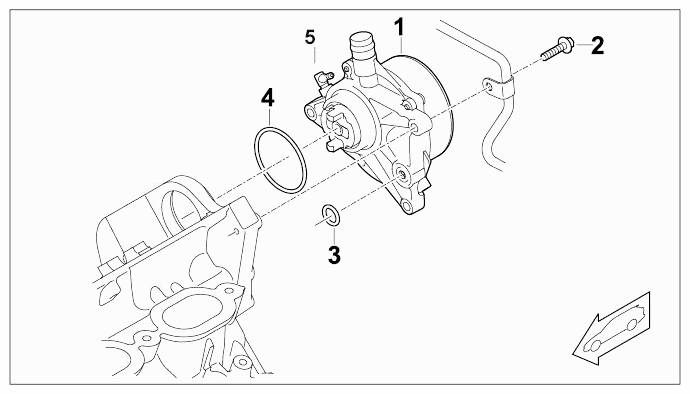

Fig 1: Identifying Vacuum Pump With Connections Vacuum Pump (Mechanical)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

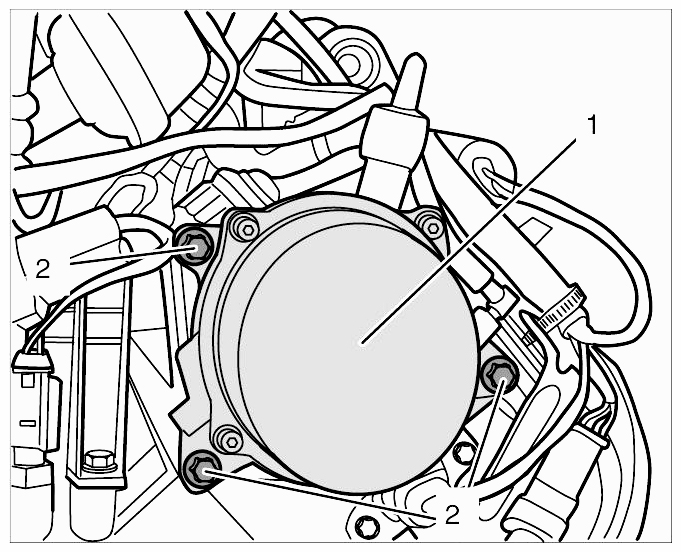

Fig 2: Identifying Vacuum Pump With Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum pump
Screw, M6 x 25
Sealing ring
Sealing ring
Secondary load connection
