Removing Rear Brake Calliper

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

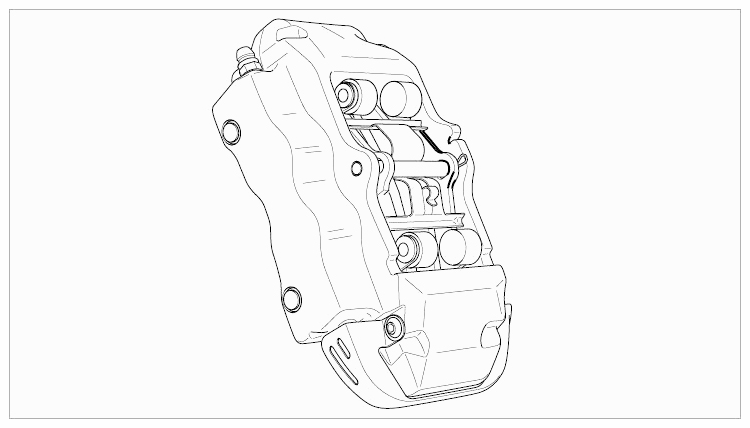

Fig 1: Identifying Brake Calliper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

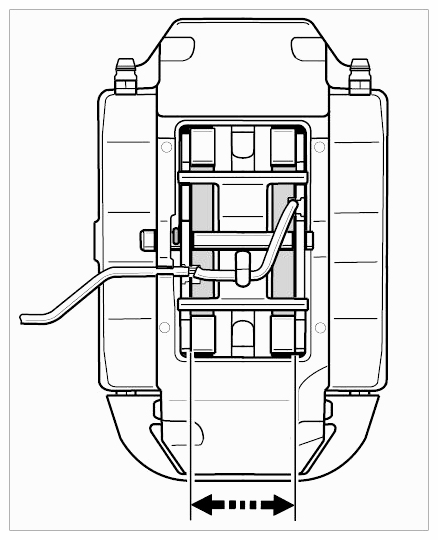

Push brake pads back slightly and evenly with piston resetting fixture (replaces P83) Nr.144 .

Fig 2: Pushing Brake Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

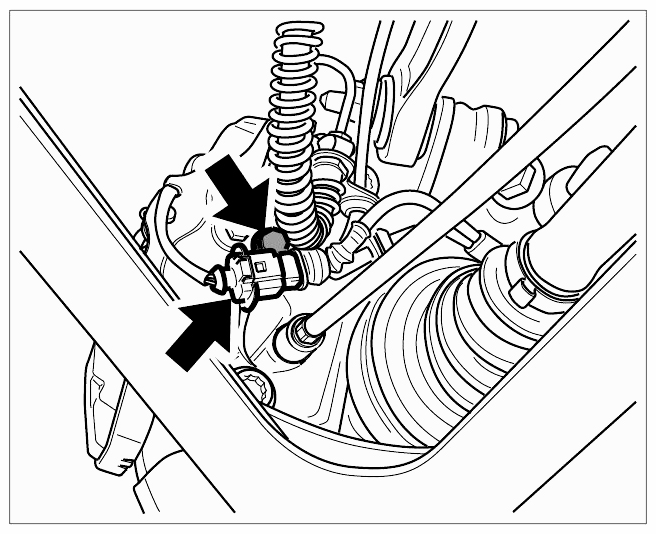

Release and unclip the connector on the wear indicator -arrow- .

Fig 3: Locating Wear Indicator Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cable holder for the brake line and wear indicator.
Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel bearing housing.

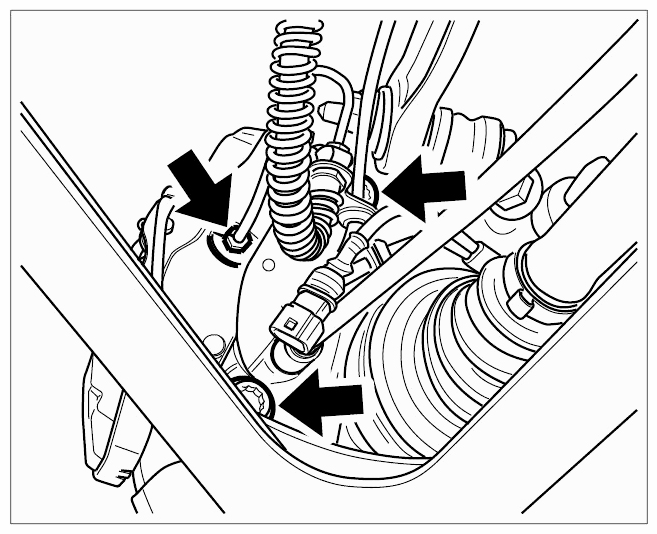

Detach the brake line at the brake calliper -arrow- and collect brake fluid in a suitable container. Close off the line with a suitable stopper. Remove the brake calliper from the wheel carrier using a socket-wrench insert, multiple tooth with pin guide Nr.33 (-arrows- ).

Fig 4: Locating Brake Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
