Removing front brake calliper (V6, V8, Turbo)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

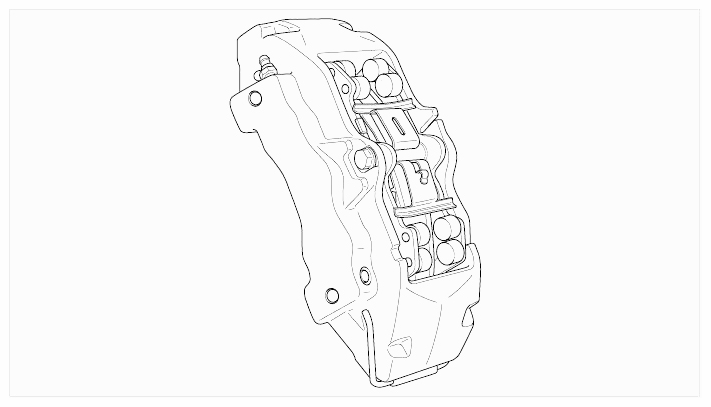

Fig 1: Identifying Front Brake Calliper (V6, V8, Turbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To gain better access for removal of the brake calliper, turn the steering fully either to the right or left.

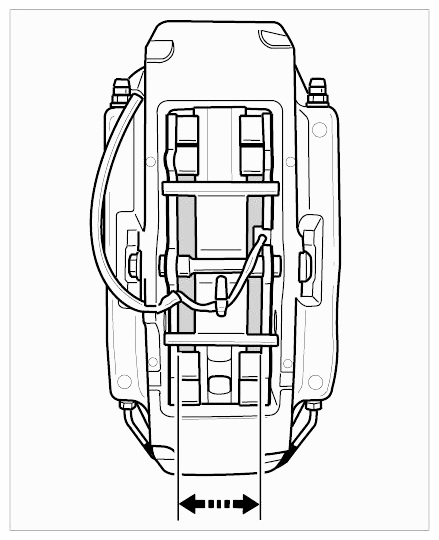

Push brake pads back slightly and evenly with piston resetting fixture (replaces P83) Nr.144 -direction arrow- .

Fig 2: Pushing Brake Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

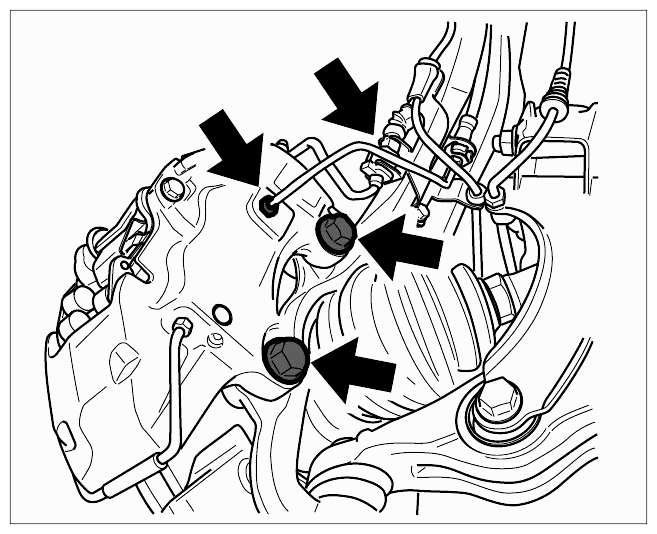

Release and unclip the connector on the wear indicator -arrow- . Loosen the brake line on the brake calliper -arrow- and collect brake fluid in a suitable container. Close off the line with suitable stoppers.

Fig 3: Locating Brake Calliper Stoppers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel bearing housing.
Remove brake calliper from wheel carrier.
