Installing Cooler For Power Steering

Information

Ensure that no damage (scoring) is caused to the steering rack. To loosen and tighten the track rods, secure the steering gear on a suitable plate.

Fig 1: Identifying Power Steering Cooler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

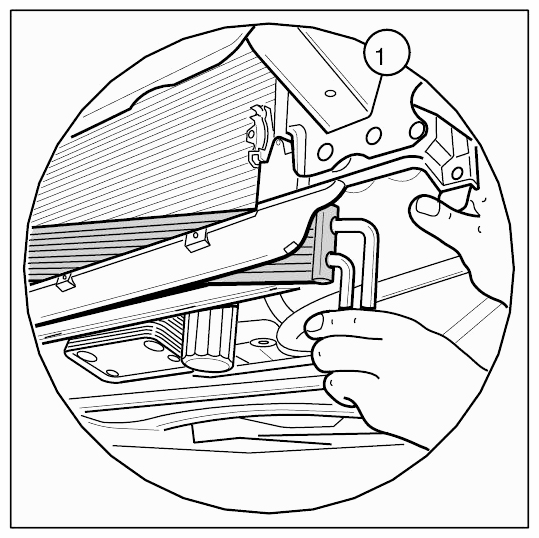

1. Push the -cooler for power steering system-  in between the radiator module and the retaining frame for the radiator.
   Fig 2: Pushing Cooler For Power Steering System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

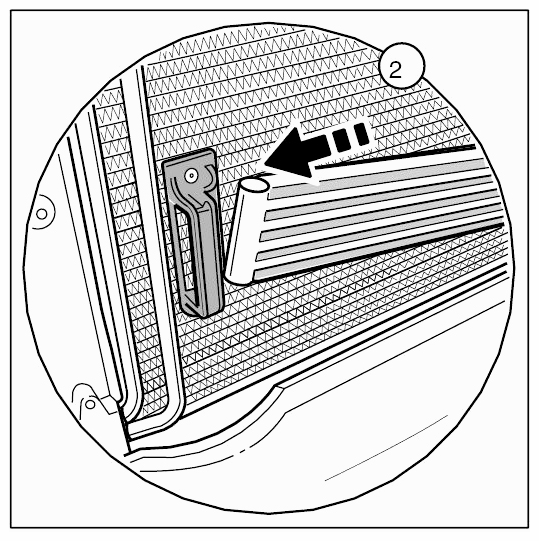

2. Retract the radiator for power steering into the mount.
   Fig 3: Retracting Radiator For Power Steering Into Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

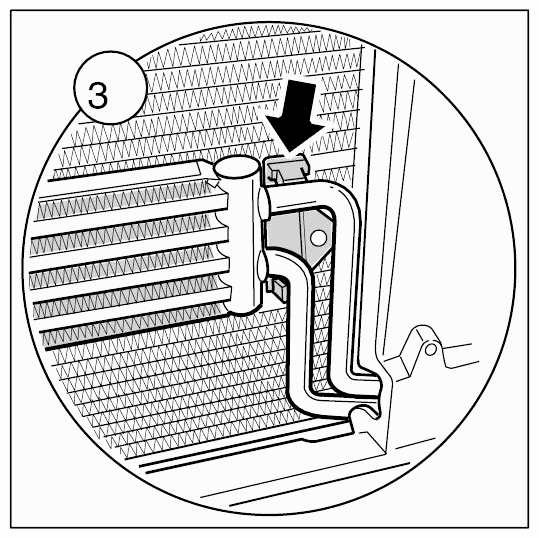

3. Clip the radiator for power steering into the bracket. Ensure correct seating.
   Fig 4: Locating Radiator Bracket (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

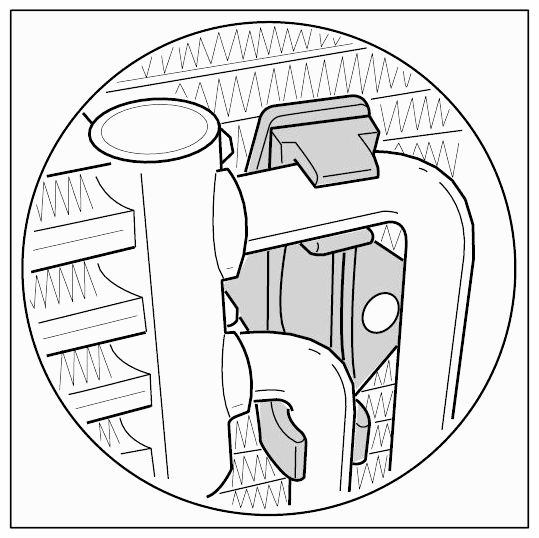

   Fig 5: Locating Radiator Bracket (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

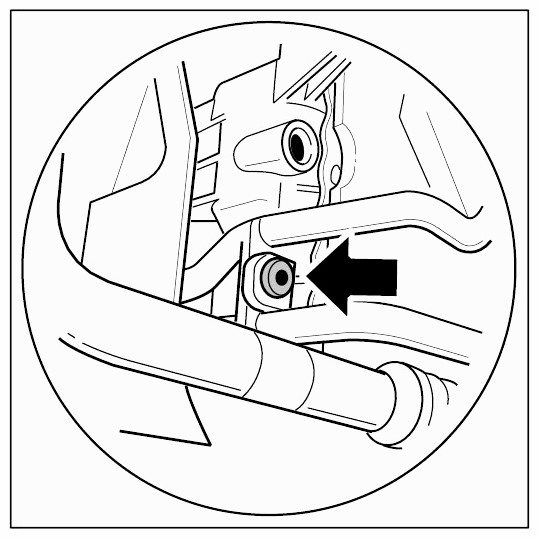

4. Fit fastening screw, connect hoses for power steering radiator and fit securing clamps. The hoses must not be twisted in the process.
   Fig 6: Locating Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

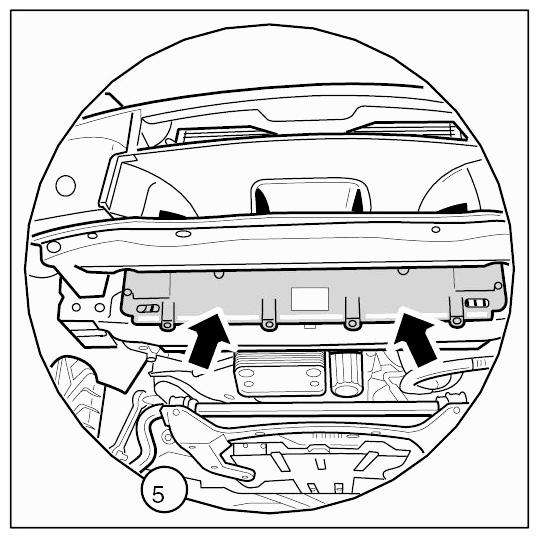

5. Together with bottom air guide, move bumper out of service position and into normal position → 503819 REMOVING AND INSTALLING LOCK CARRIER AND FIT RETAINING BRACKET (FRONT APRON ENGINE GUARD) .
   Fig 7: Locating Bottom Air Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

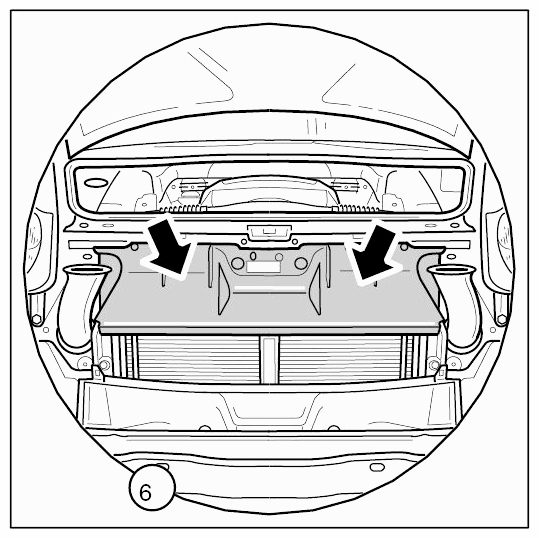

6. Install top air guide and lateral air guides.
   Fig 8: Locating Top Air Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
