WM 487919 Removing And Installing Tie Rod (All Models): Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation |
Type |
Number |
|

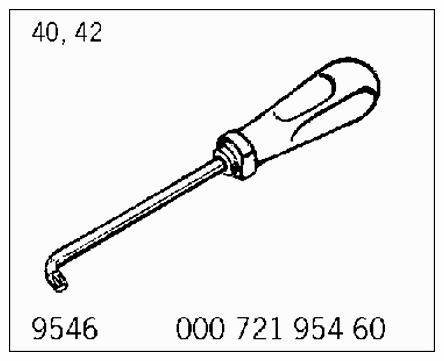

| Screwdriver |
Special tool |
9546 |
|
| assembly tools for spring-band clamps |
Commercially available tool |
Nr.72 |
|

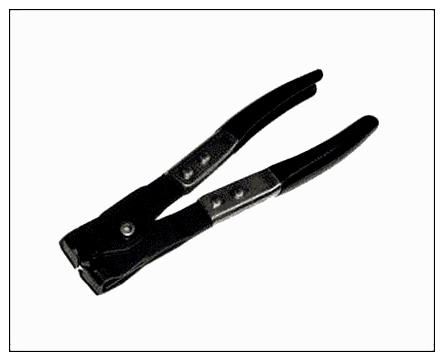

| Hose clamp pliers |
Commercially available tool |
Nr.74 |
|

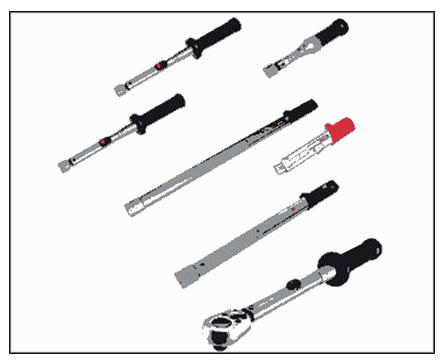

| Torque wrench, signal-transmitting with change-over ratchet |
Commercially available tool |
Nr.90 |
|

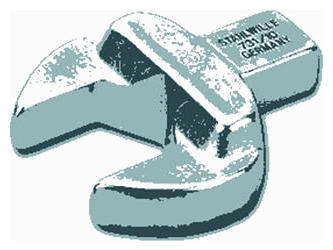

| Accessory for torque wrench: Open-jawed wrench insert, a/f 24 |
Commercially available tool |
Nr.95-1 |
|

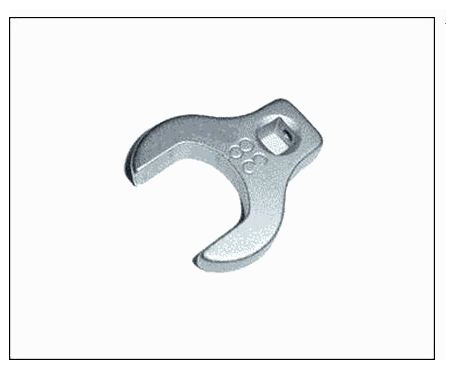

| Open-jawed wrench insert |
a/f 38 Commercially available tool |
Nr.95-2 |
|

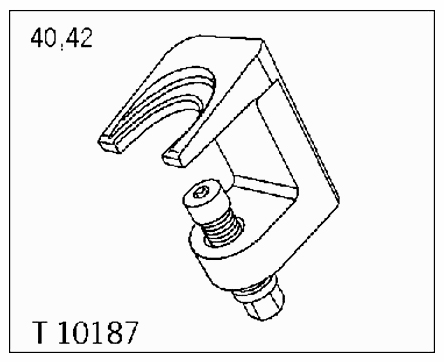

| Press-out tool |
VW tool |
T10187 |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

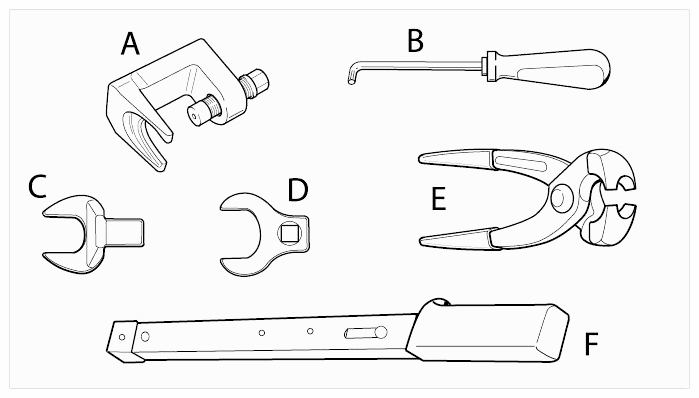

| Item |
Designation |
Explanation |
| -A- |
Press-out tool T10187 |
To press out the ball joint on the wheel carrier. |
| -B- |
Screwdriver 9546 |
To counter the ball joints (track rod) during assembly and disassembly. |
| -C- |
Accessory for torque wrench: Open-jawed wrench insert, a/f 24 Nr.95-1 |
To fit tie rod (lock nut). |
| -D- |
Open-jawed wrench insert a/f 38 Nr.95-2 |
To fasten tie rod to steering gear (steering rack). |
| -E- |
Hose clamp pliers Nr.74 |
To fasten joint boot to steering housing. |
| -F- |
Torque wrench, signal transmitting with change-over ratchet Nr.90 |
To adjust the tightening torque. |
